Automatic Turntable Positioning Labeling Machine
Designed for products requiring precise fixed-position labeling, this machine detects product orientation and applies labels at a specific location on round bottles and containers.
Accurate Fixed-position Labeling for Round Bottles
The automatic turntable positioning labeling machine is used when labels must be applied to a precise position instead of random wrap-around placement. It is suitable for products that need alignment with a logo, bottle mark, cap direction or molded reference point.
The turntable positioning system controls bottle orientation before labeling, making it ideal for cosmetic, skincare, wine, chemical and specialty packaging products.
What Products Can This Machine Label?
This machine is suitable for round containers where the label must align with a specific product position.
Cosmetic Bottles
Skincare bottles, lotion bottles, serum bottles and premium cosmetic packaging.
Wine & Beverage Bottles
Round bottles requiring label alignment with logos, marks or bottle seams.
Chemical Containers
Round chemical bottles and containers requiring accurate label placement.
Specialty Packaging
Products with molded marks, orientation points or fixed label position requirements.
Designed for Precise Positioning Labeling
This machine helps buyers solve label alignment problems for products that require controlled orientation before labeling.
Fixed Position Labeling
Labels can be applied at a specific position instead of random wrap-around placement.
Turntable Positioning
The turntable system controls product orientation before the label is applied.
High Precision
Servo-driven labeling system supports accurate and repeatable label placement.
Logo Alignment
Suitable for products requiring labels to align with bottle logos, seams or reference marks.
Vision Compatible
Can be integrated with vision inspection systems for advanced position detection.
Line Integration
Can work with filling, capping, coding and packaging systems.
Machine Parameters
Final specifications can be adjusted according to bottle shape, label size and positioning requirements.
| Machine Type | Automatic Turntable Positioning Labeling Machine |
|---|---|
| Alternative Name | Fixed Position Round Bottle Labeling Machine |
| Labeling Speed | 30–120 pcs/min |
| Labeling Accuracy | ±0.5 mm |
| Bottle Diameter | 20–150 mm |
| Bottle Height | 30–350 mm |
| Label Width | 10–180 mm |
| Label Length | 20–350 mm |
| Control System | PLC + Touchscreen |
| Drive System | Servo Motor |
| Machine Size | 2200 × 1200 × 1500 mm |
| Machine Weight | Approx. 260 kg |
| Machine Material | SUS304 stainless steel and aluminum alloy structure |
Available Custom Options
Optional modules can improve label positioning, inspection and production line compatibility.
Vision Inspection System
Detect product orientation, label presence and label position accuracy.
Transparent Label Sensor
Suitable for clear labels used in cosmetic and premium packaging.
Date Coding Printer
Print batch number, production date or expiry date during labeling.

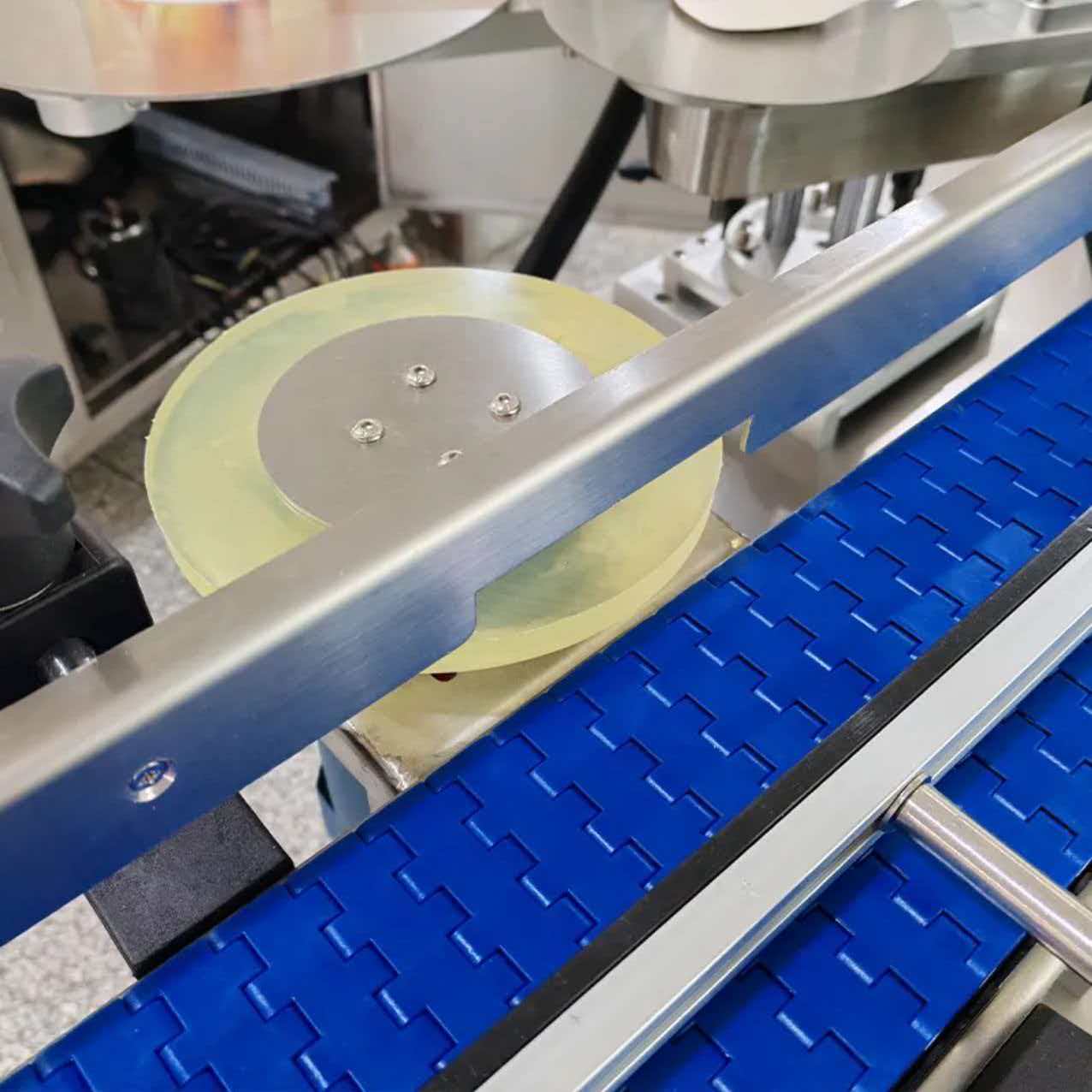

Customized Turntable
Turntable and fixture can be customized according to bottle diameter and shape.
Reject System
Remove products with missing or incorrect labels after inspection.
Production Line Connection
Connect with filling, capping, coding and downstream packaging equipment.

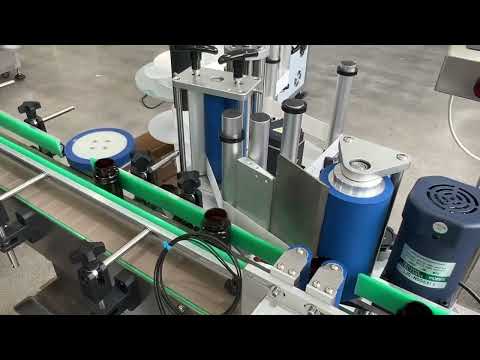

Watch the Machine in Operation
To keep the page loading fast, the video loads only after clicking the play button.

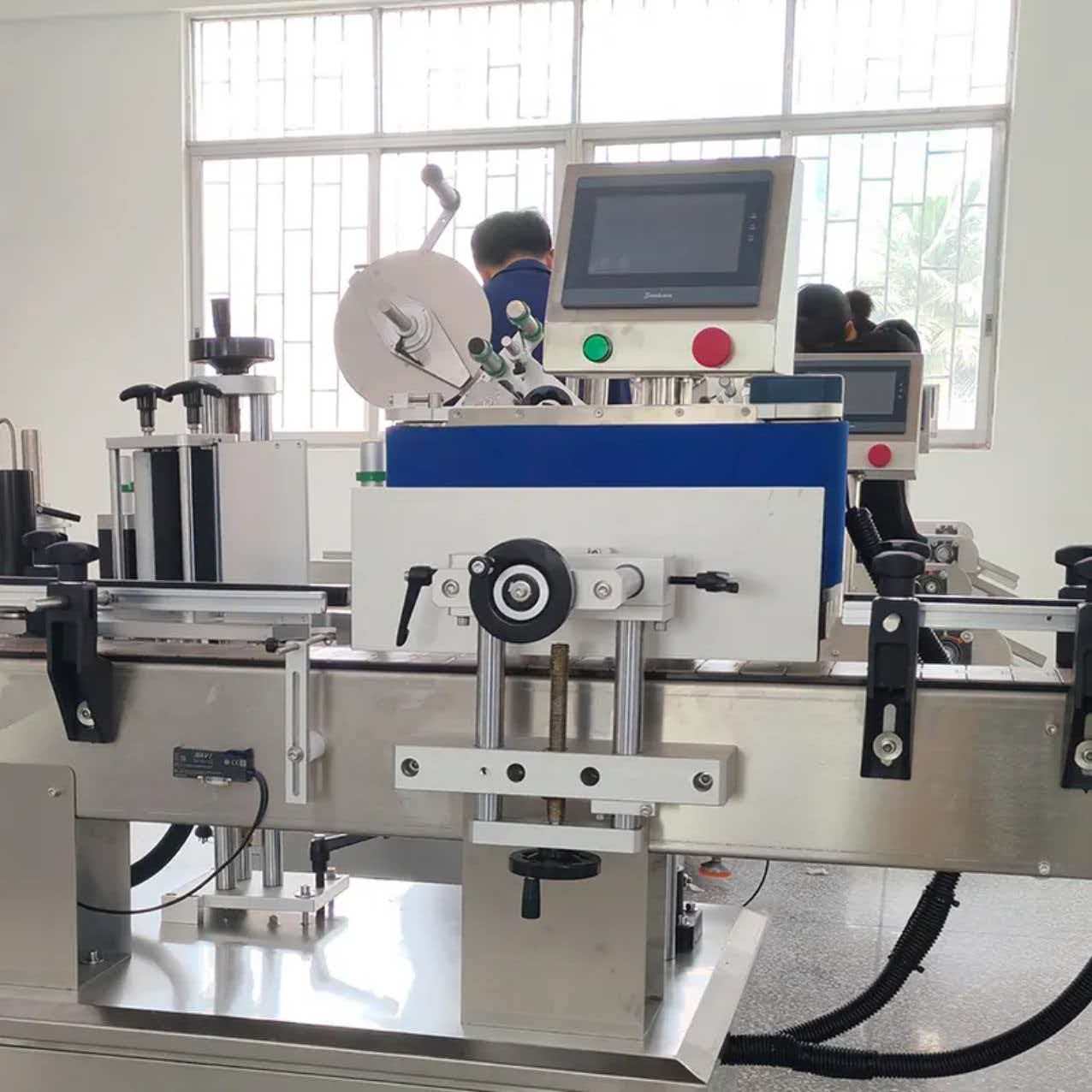

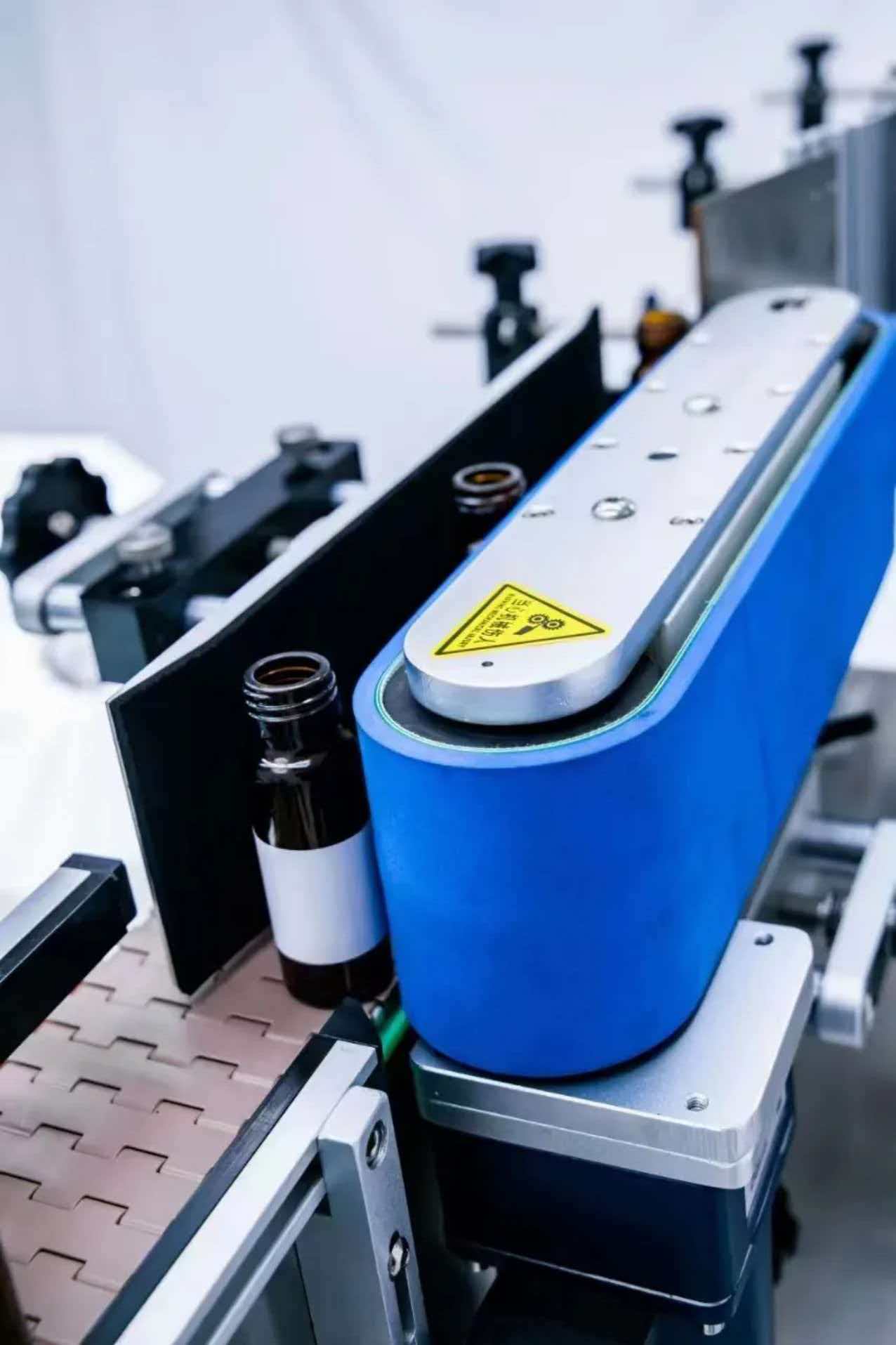

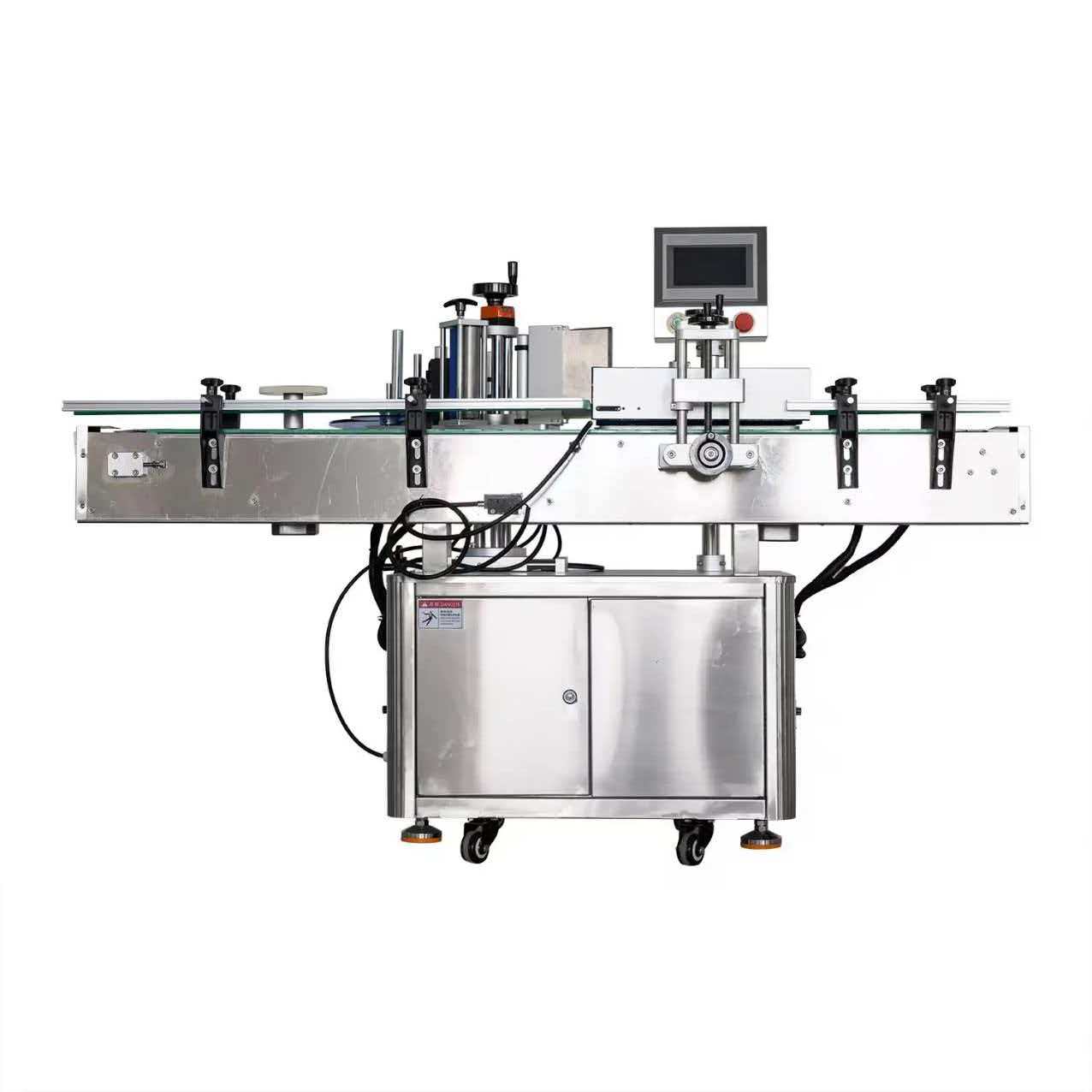

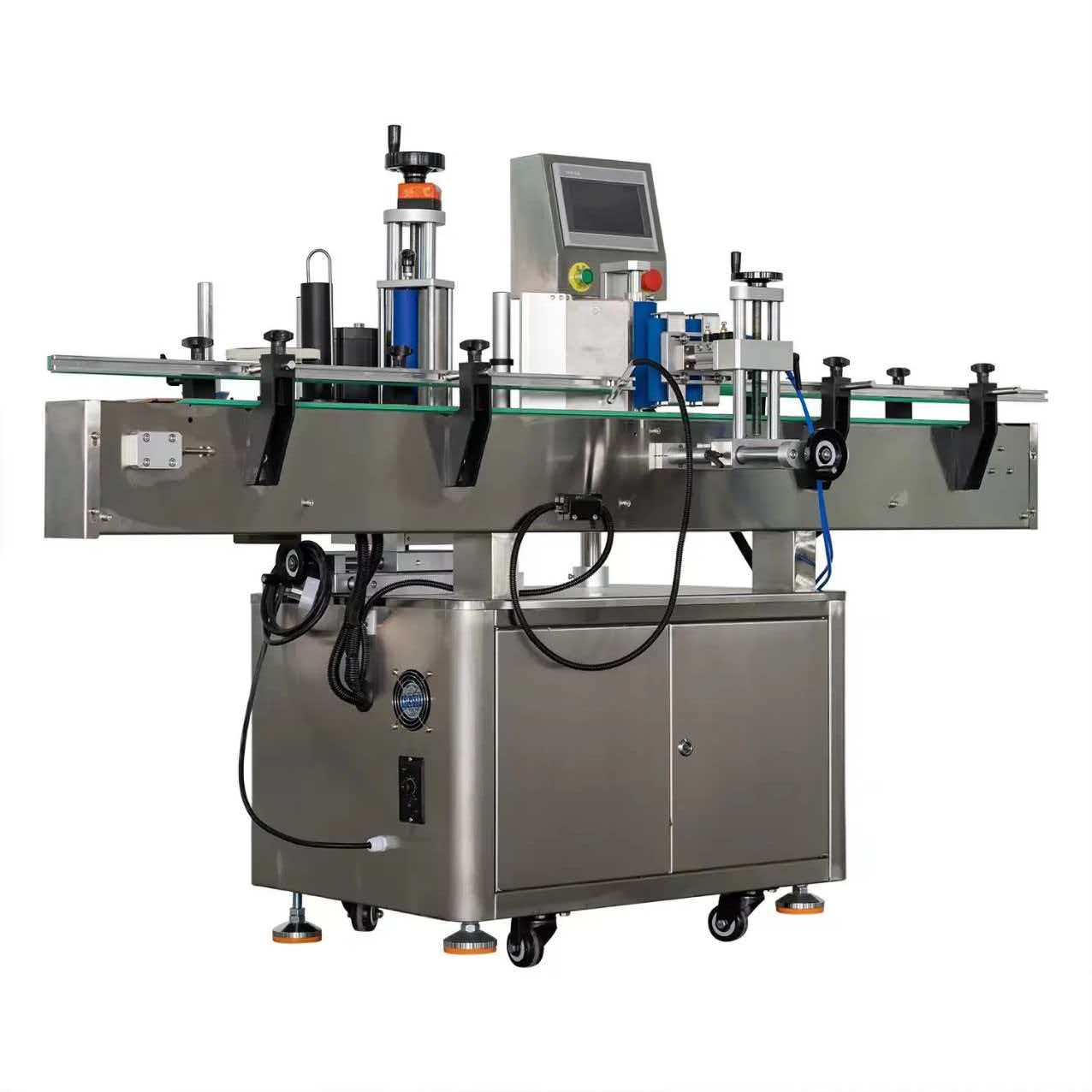

Product Details and Machine Structure
Refer additional machine images to help you choose machine easier.
Common Questions About Positioning Labeling Machines
These answers help buyers understand when fixed-position labeling is required.
What is a positioning labeling machine?
It is a labeling machine that applies labels to a specific fixed position on the product instead of random wrap-around placement.
Why choose positioning labeling instead of standard round bottle labeling?
Positioning labeling is needed when the label must align with a logo, bottle seam, cap direction or molded reference point.
Can it align labels with bottle logos?
Yes. The machine can detect product orientation and apply labels according to the required position.
What products are suitable?
Cosmetic bottles, wine bottles, chemical containers and round bottles with fixed label position requirements are suitable.
Can it integrate with vision inspection systems?
Yes. Vision inspection can be added for orientation detection and label quality checking.
Does it support transparent labels?
Yes. A transparent label sensor can be configured according to label material.
Can the turntable be customized?
Yes. The turntable fixture can be customized according to bottle diameter, shape and positioning method.
What information should I provide for quotation?
Please provide bottle photos, bottle size, label size, required label position and expected speed.
Need Accurate Position Labeling for Your Products?
Send us your bottle size, label size and positioning requirements. Our team will recommend a suitable labeling solution.
