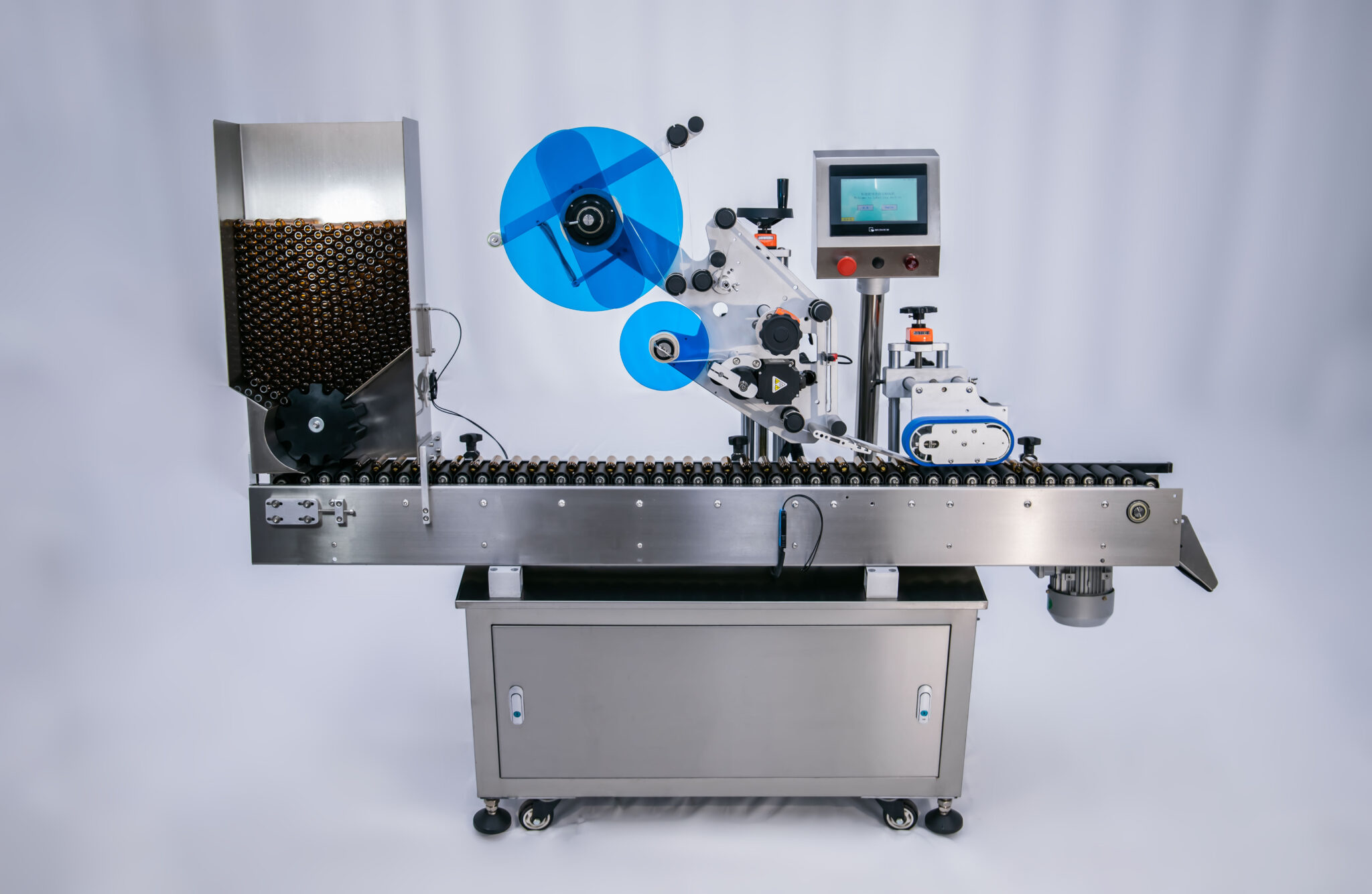

Automatic Horizontal Round Bottle Labeling Machine for Vials & Tubes
Designed for precise wrap-around labeling of small diameter round bottles and unstable cylindrical containers such as vials, ampoules, test tubes, syringes, lip balm tubes and pen-shaped products. The horizontal feeding structure improves product stability and supports high-speed labeling for pharmaceutical, cosmetic, laboratory, food and chemical applications.
High-speed Labeling for Small Cylindrical Containers

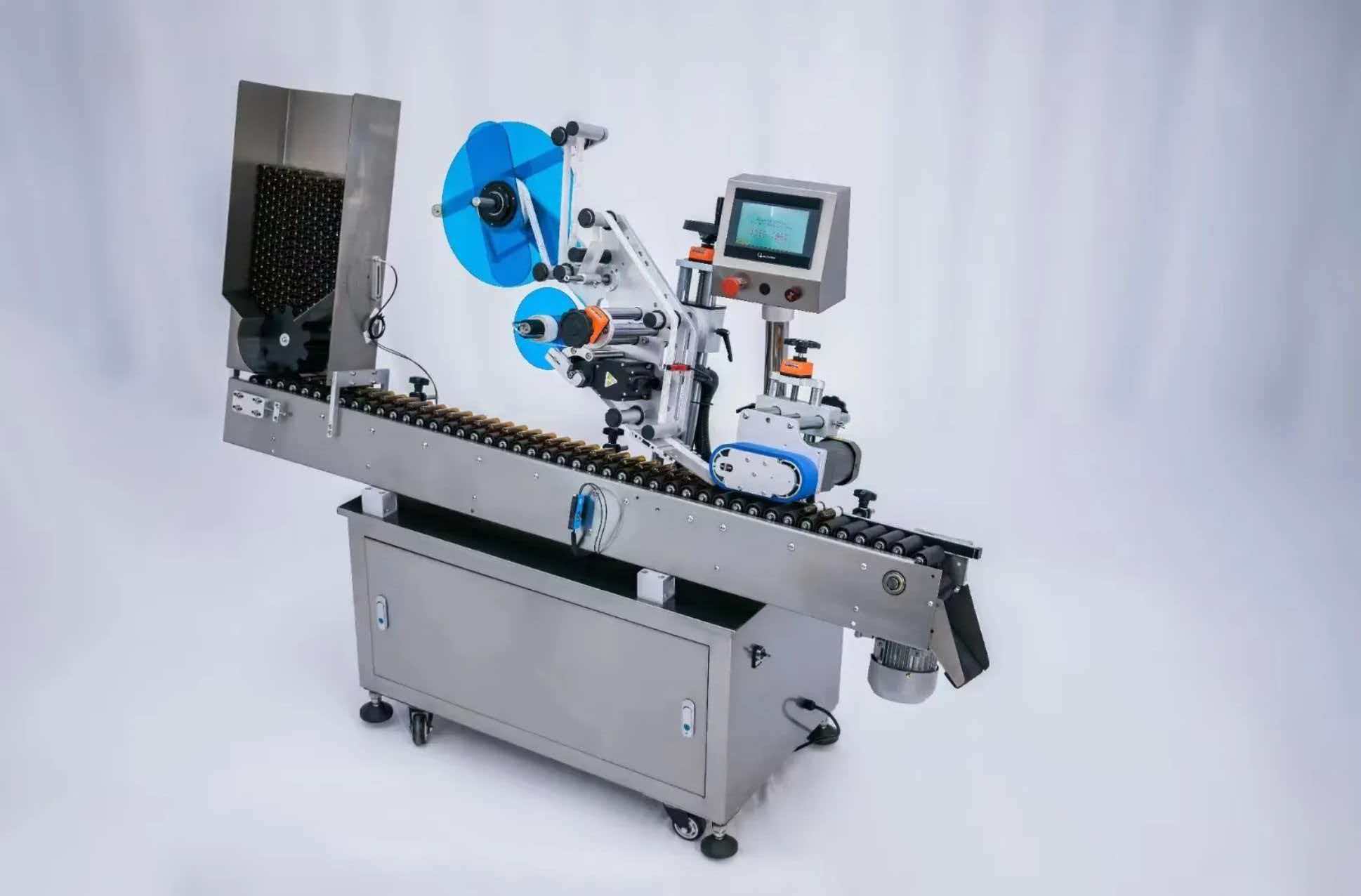

The horizontal round bottle labeling machine is built for small cylindrical products that are difficult to stand upright during labeling. By feeding products horizontally, the system improves conveying stability, reduces product shaking and supports accurate wrap-around label application.
It is widely used for pharmaceutical vials, ampoules, syringes, laboratory test tubes, cosmetic lip balm tubes, pen-shaped containers and other small round products that require stable labeling speed and repeatable accuracy.
When Should You Choose a Horizontal Labeling Machine?
Horizontal labeling is recommended when products are too small, too light or too unstable to stand upright on a normal conveyor.
Unstable Round Products
Small vials, tubes and ampoules can roll or fall when conveyed vertically. Horizontal feeding helps keep them stable during labeling.
Small Diameter Containers
Products with a diameter around 10–30 mm usually need special feeding and positioning to achieve consistent label placement.
High-speed Batch Production
For pharmaceutical, cosmetic and laboratory products, horizontal labeling supports faster continuous production with less manual handling.
Why Horizontal Feeding Improves Labeling Stability
For small cylindrical containers, the main challenge is not only label accuracy but also product stability before the label touches the surface.
Less Product Shaking
Horizontal conveying supports the product body along the feeding path, helping reduce movement during label dispensing.
Better Wrap-around Contact
The label can be applied while the container rotates smoothly, improving label adhesion and reducing wrinkles or misalignment.
More Suitable for Small Tubes
Products such as test tubes, lip balm tubes and ampoules are easier to handle horizontally than vertically in high-speed production.
What Products Can This Machine Label?
This machine is suitable for small cylindrical containers that require stable horizontal feeding and accurate label placement.
Pharmaceutical Products
Vials, ampoules, syringes and injection tubes.
Cosmetics
Lip balm tubes, lipstick tubes, mascara and small cosmetic containers.
Laboratory Products
Test tubes, reagent tubes and sample containers.
Food & Chemical
Small seasoning tubes, flavor tubes and chemical reagent tubes.
Designed for Accurate and Stable Labeling
Core features focus on labeling accuracy, stable feeding and convenient operation for high-volume production.
High-speed Labeling
Labeling speed can reach 100–300 pieces per minute depending on product size and label requirements.
Accurate Label Placement
Servo-driven control supports stable label dispensing and typical accuracy up to ±0.5 mm.
PLC & Touchscreen
Easy operation, parameter adjustment and recipe storage for different product sizes.

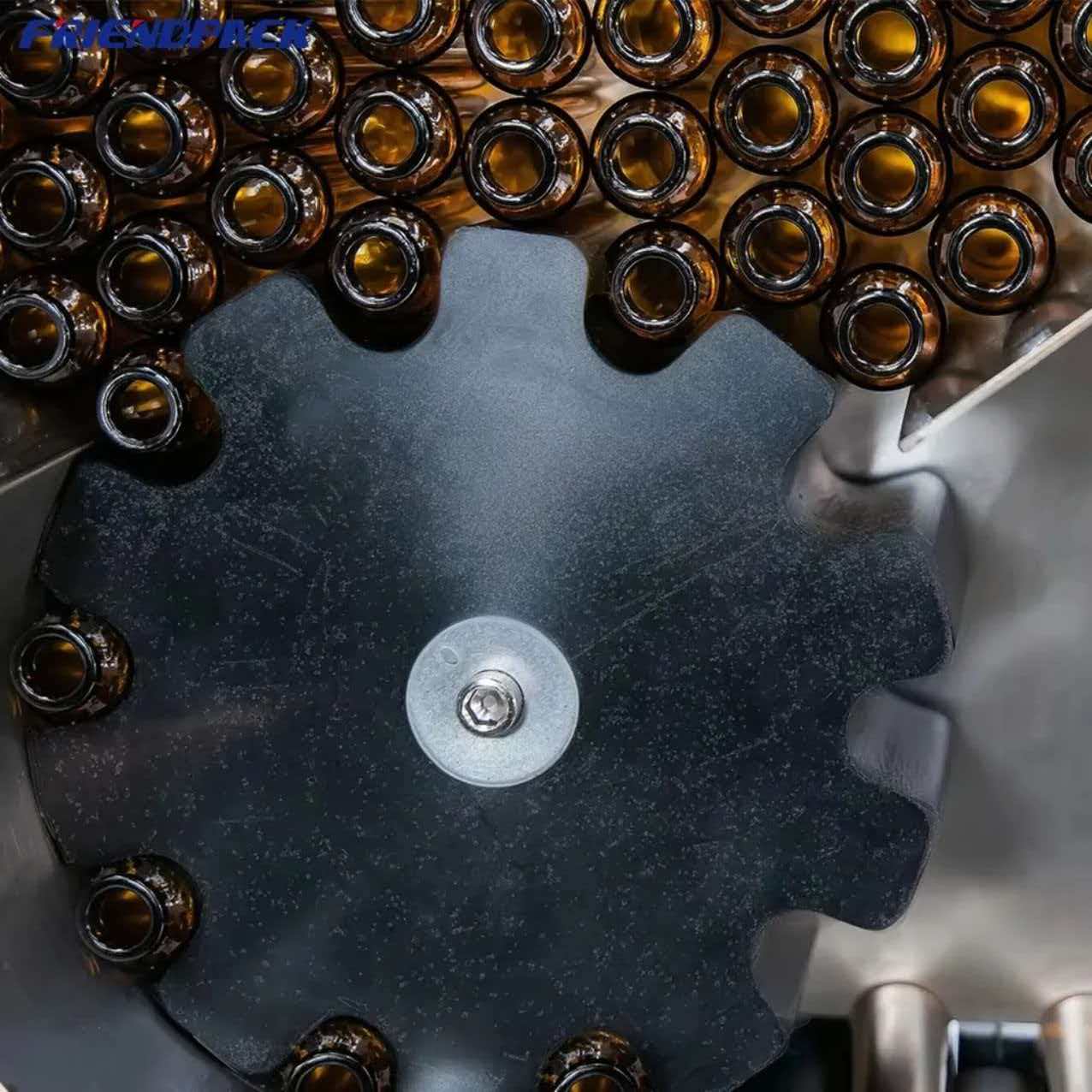

Automatic Product Feeding
Horizontal feeding structure supports continuous production for small cylindrical products.
Optional Detection
Missing label detection, transparent label sensor and vision inspection can be configured as needed.
Stainless Steel Frame
SUS304 stainless steel construction supports clean and reliable production environments.
Machine Parameters
Final configuration can be adjusted according to product size, label size and production line requirements.
| Labeling Speed | 100–300 pcs/min |
|---|---|
| Label Accuracy | ±0.5 mm |
| Product Diameter | 10–30 mm |
| Product Length | 20–200 mm |
| Label Width | 10–150 mm |
| Label Length | 20–300 mm |
| Power Supply | 220V / 50Hz or 60Hz |
| Power Consumption | 1.0–2.0 kW |
| Machine Size | 2000 × 800 × 1400 mm |
| Machine Weight | Approx. 200 kg |
| Machine Material | SUS304 Stainless Steel |
Horizontal Labeling Machine vs Vertical Labeling Machine
Choosing the correct feeding direction is important for label accuracy, product stability and production efficiency.
| Horizontal Labeling Machine | Best for small cylindrical products that cannot stand steadily, such as vials, ampoules, test tubes, syringes and lip balm tubes. |
|---|---|
| Vertical Labeling Machine | Best for larger round bottles that can stand upright on a conveyor, such as beverage bottles, cosmetic bottles and chemical bottles. |
| Key Selection Factor | If the product rolls, shakes or falls during upright conveying, a horizontal labeling structure is usually more suitable. |
Available Custom Options
Optional devices can be added according to labeling material, inspection needs and production workflow.
Date Coding Printer
Print production date, batch number or expiry information.
Thermal Transfer Printer
Support variable data printing for labels and packaging needs.
Vision Inspection System
Verify label presence, position and labeling quality.
Transparent Label Sensor
Detect clear labels for cosmetic or premium packaging applications.
Automatic Collection Tray
Collect finished labeled products for smoother operation.
Customized Conveyor
Adapt the machine to your production line layout and product flow.

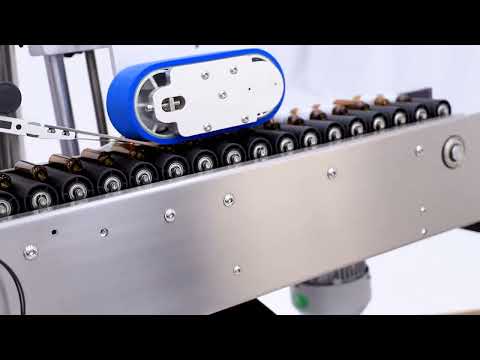

Watch the Machine in Operation
To keep the page loading fast, the video loads only after clicking the play button.

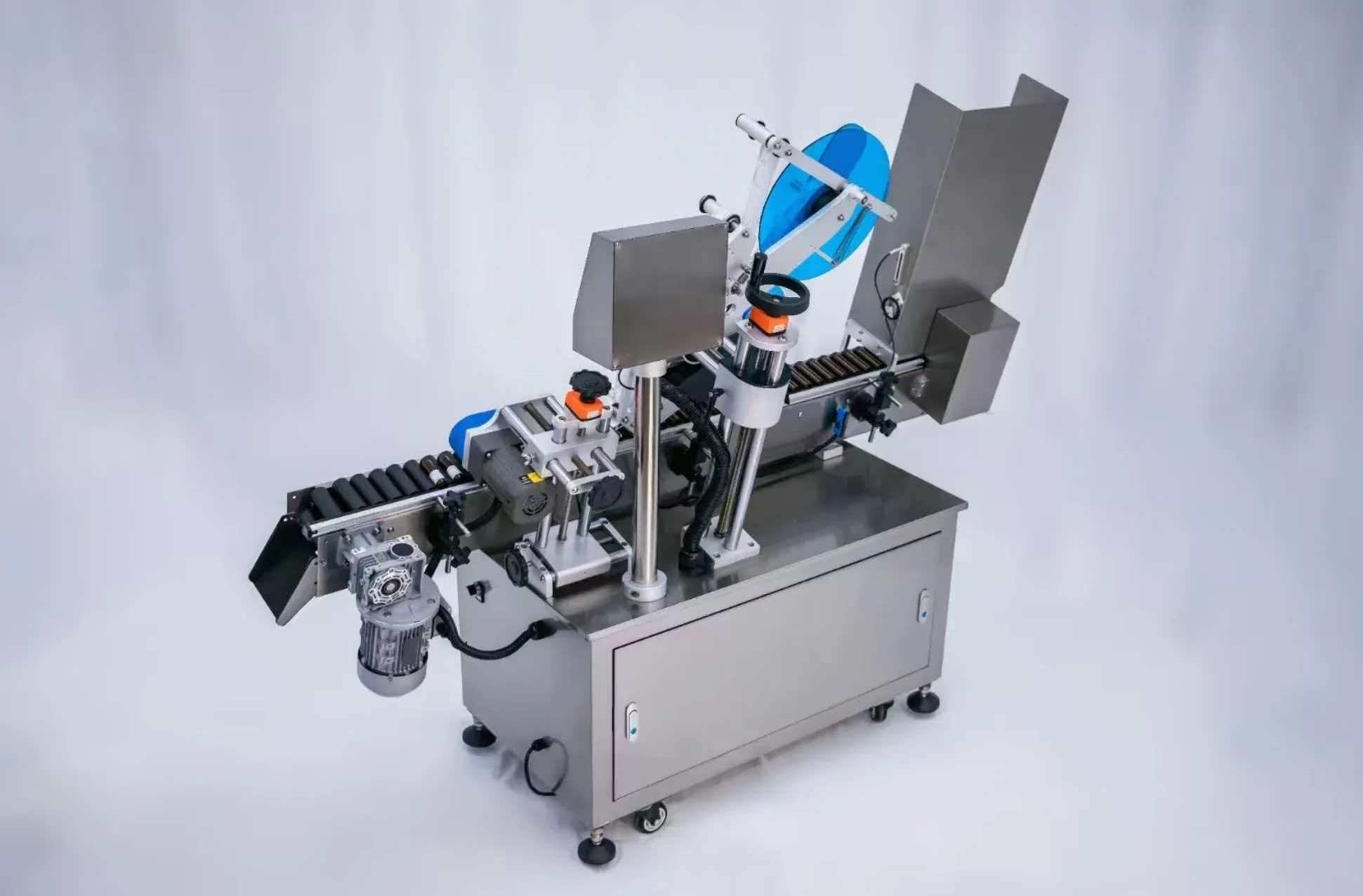

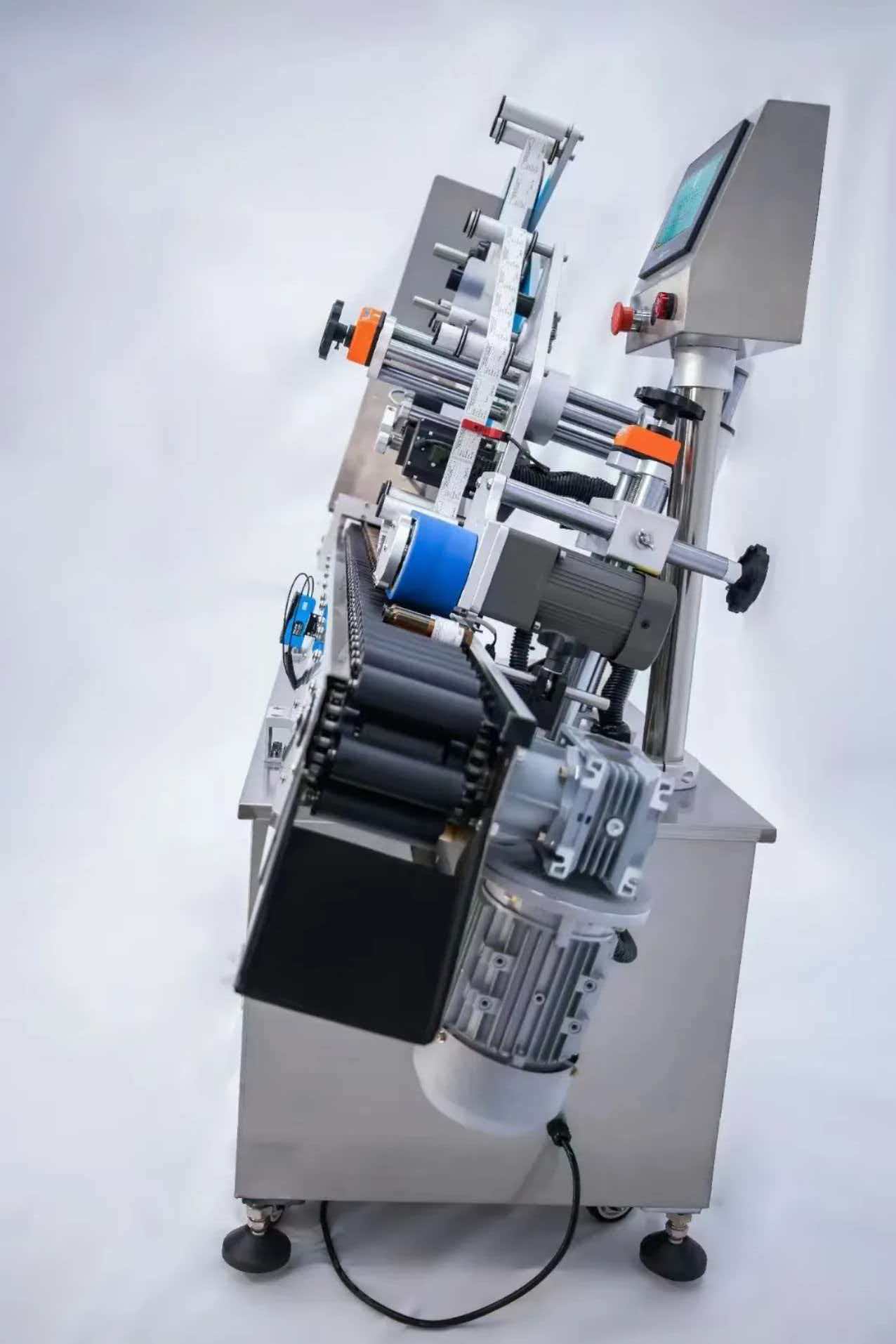

Product Details and Machine Structure
Review machine details, feeding structure and labeling station images to evaluate whether this solution fits your product.
Common Questions About This Labeling Machine
These answers help buyers quickly evaluate whether this machine is suitable for their product.
What is a horizontal round bottle labeling machine used for?
It is used for wrap-around labeling of small cylindrical products that are difficult to label in an upright position, such as vials, ampoules, test tubes, syringes and lip balm tubes.
Why choose horizontal labeling instead of vertical labeling?
Horizontal labeling is better when products are small, light or unstable. It helps prevent rolling, shaking and falling during feeding and label application.
What is the labeling speed?
Typical speed is 100–300 pieces per minute depending on product size, label size, feeding stability and final configuration.
Can it label transparent labels?
Yes. A transparent label sensor can be added for clear labels used in cosmetics, pharmaceuticals and premium packaging.
Is it suitable for pharmaceutical production?
Yes. SUS304/SUS316 construction, clean design and optional inspection devices can be configured according to pharmaceutical production requirements.
Can it integrate with a filling or packaging line?
Yes. It can be connected with filling, capping, coding, inspection and packaging equipment according to your production workflow.
What label materials are supported?
Paper labels, PET labels, PP labels, transparent labels and specialty adhesive labels can be supported depending on the sensor and labeling configuration.
What information should I provide for quotation?
Please provide product photos, container diameter and length, label size, labeling speed requirement, label material and whether you need coding or inspection options.
