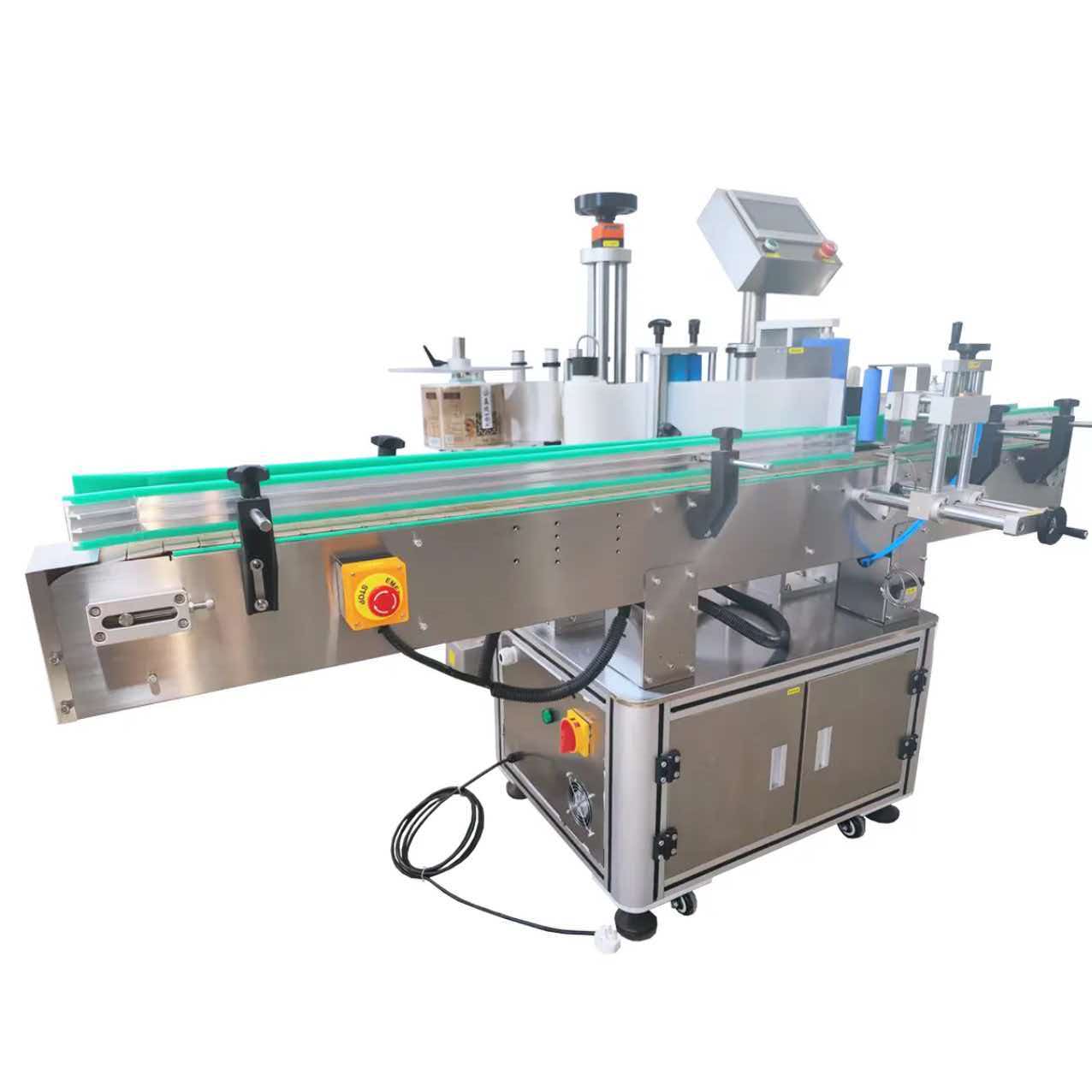

Automatic Transparent Label Round Bottle Labeling Machine
Designed for round bottles using clear or transparent self-adhesive labels. A dedicated transparent label sensor detects the gap between clear labels more reliably than a standard photoelectric sensor, supporting accurate label dispensing and stable production.
Reliable Detection for Clear Labels on Round Bottles
Standard photoelectric label sensors may have difficulty identifying the gap between transparent labels and transparent backing material. This model adds a dedicated clear-label sensor to detect label edges more reliably and reduce missed dispensing, double feeding and inconsistent label positioning.
The machine is suitable for glass bottles, PET bottles, cosmetic bottles, beverage bottles, pharmaceutical containers and other cylindrical products. It can operate independently or integrate with filling machines, capping equipment and coding machines in a complete packaging line.
What Products Can This Machine Label?
The machine is designed for cylindrical containers requiring clear-label detection, accurate positioning and a clean premium packaging appearance.
Cosmetic Bottles
Essential oil bottles, serum bottles, toner bottles, jars and transparent cosmetic packaging.
Beverage Bottles
Glass beverage bottles, PET drink bottles, water bottles and premium clear-label packaging.
Pharmaceutical Containers
Medicine bottles, healthcare bottles and small cylindrical containers using clear labels.
Daily Chemical Products
Cleaning bottles, personal-care bottles and transparent containers requiring accurate wrap-around labels.
Built Around the Transparent Label Detection Problem
This configuration retains the positioning and wrap-around labeling functions of a round bottle labeler while adding a sensor designed specifically for clear-label detection.

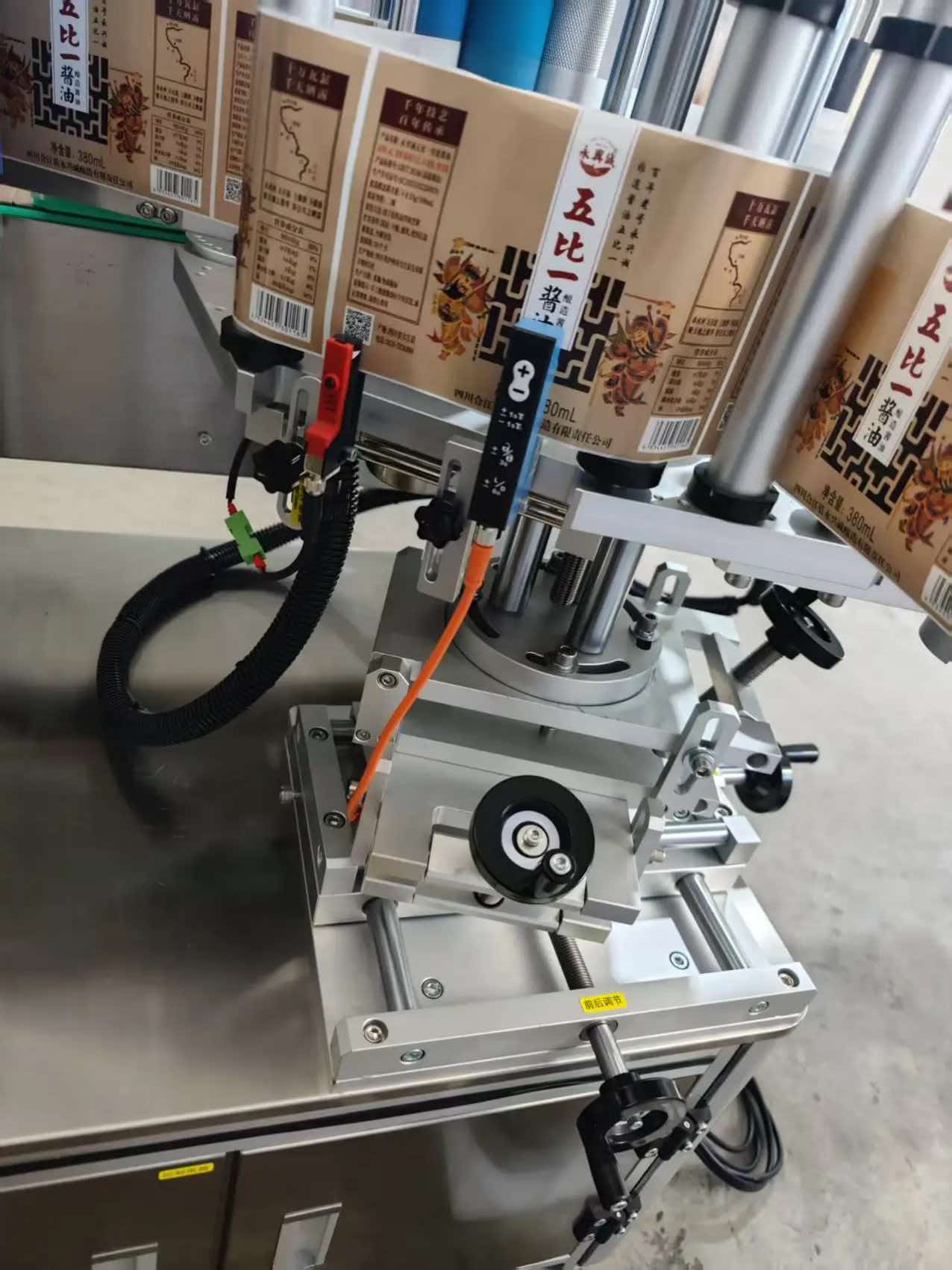

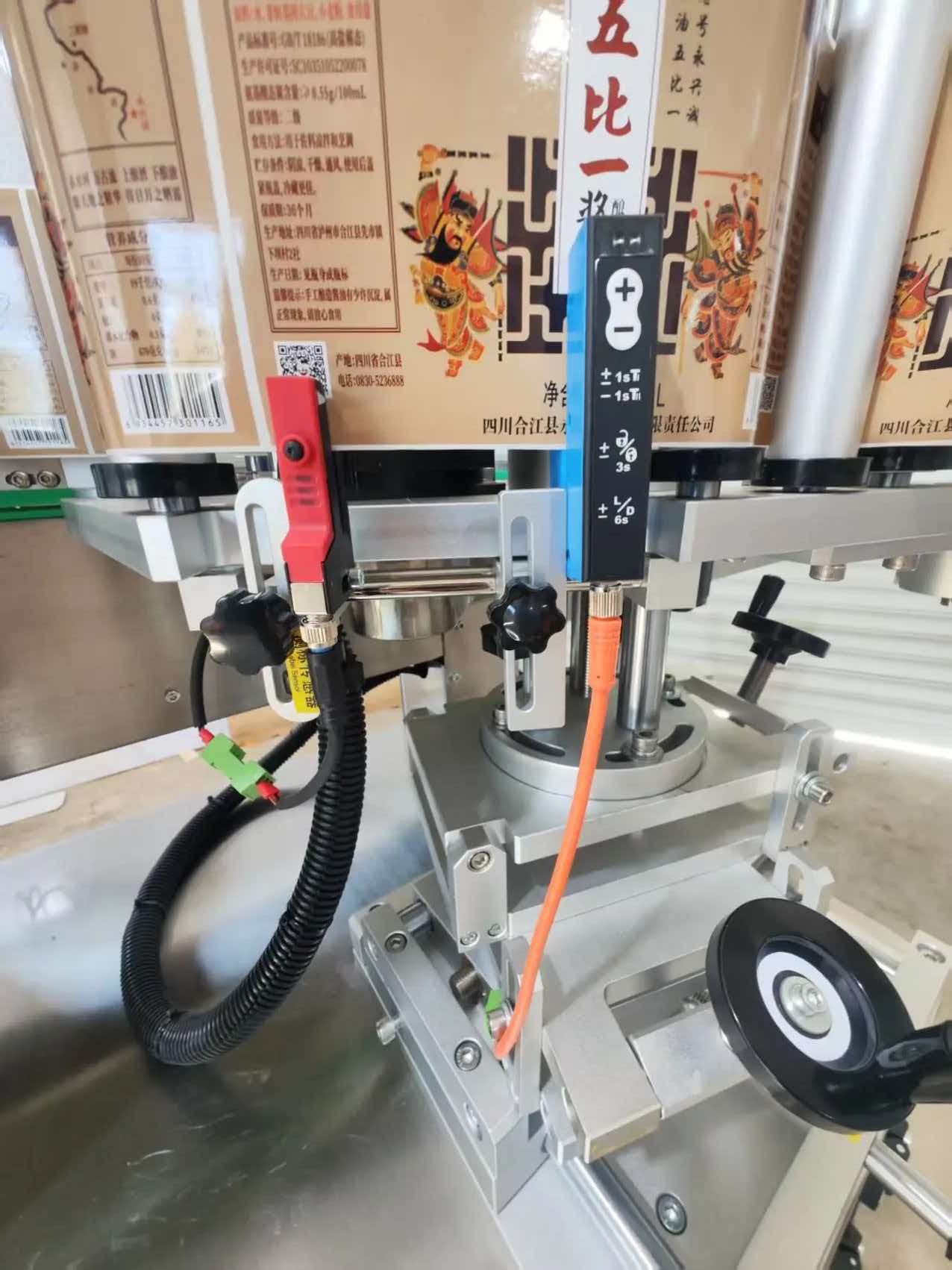

Transparent Label Sensor
Detects the gap between clear labels more reliably than a standard photoelectric label sensor.
Stable Label Dispensing
Helps reduce missed labels, repeated dispensing and inconsistent label length during continuous operation.
Round Bottle Positioning
Optional positioning components can align bottle features before applying the label at a fixed location.
Servo-driven Labeling
Servo control supports consistent label feeding, accurate stop position and smoother speed adjustment.
Flexible Product Changeover
Guide rails, bottle spacing and labeling parameters can be adjusted for different bottle and label sizes.
Line Integration
Can connect with filling, capping, coding, inspection and downstream packaging equipment.
Transparent Label Machine vs. Standard Positioning Labeler
The main difference is the label detection method. Bottle positioning and wrap-around labeling can remain similar, but transparent labels require a suitable clear-label sensor.
Standard Positioning Labeling Machine
Recommended when products use conventional paper, opaque film or other labels that a standard photoelectric sensor can detect reliably.
- Standard photoelectric label sensor
- Suitable for opaque paper or film labels
- Fixed-position labeling can be configured
- Lower sensor configuration cost
Transparent Label Round Bottle Labeler
Recommended when the label or backing material is transparent and ordinary sensors cannot consistently identify the label gap.
- Dedicated transparent-label sensor
- Designed for clear self-adhesive labels
- Supports positioning and wrap-around labeling
- Reduces missed or repeated label dispensing
What to Confirm Before Choosing a Clear-label Machine
Clear-label projects are affected by more than bottle diameter. Label material, backing paper, bottle transparency and positioning requirements should all be tested before final configuration.
Label & Backing Material
Provide actual label samples because clear films and backing materials can produce different sensor responses.
Bottle Material & Shape
Glass, PET and colored containers may require different adjustment, especially when the bottle surface is reflective.
Label Position
Confirm whether the label can be applied randomly around the bottle or must align with a cap, mark, handle or printed feature.
Production Capacity
Expected output affects conveyor speed, bottle spacing, positioning mechanism and label-head configuration.
Why Choose Flypack Transparent Label Round Bottle Labeling Machine?
Flypack provides customized transparent label solutions based on bottle shape, label material, production requirements and packaging line conditions.
Transparent Label Application Experience
We focus on transparent label round bottle labeling applications and optimize sensor selection, labeling accuracy and machine configuration according to actual production requirements.
Sample Testing Before Production
Customers can provide bottles and transparent label samples before ordering. We evaluate label detection performance, positioning requirements and machine configuration to ensure stable operation.
Complete Packaging Line Integration
The transparent label labeling machine can be integrated with filling machines, capping machines, coding systems, inspection equipment and complete packaging lines.
Machine Parameters
Final parameters should be confirmed from bottle samples, transparent label samples, positioning requirements and expected line speed.
| Machine Type | Automatic Transparent Label Round Bottle Labeling Machine |
|---|---|
| Labeling Method | Round bottle wrap-around labeling / fixed-position labeling optional |
| Label Sensor | Dedicated transparent label sensor |
| Suitable Labels | Transparent film labels, clear self-adhesive labels, paper labels and opaque film labels |
| Suitable Containers | Glass, PET, plastic and metal round bottles |
| Control System | PLC + touchscreen |
| Drive System | Servo motor labeling control |
| Labeling Speed | Customized according to bottle size, positioning method and label length |
| Labeling Accuracy | Depends on bottle tolerance, label material and positioning method |
| Power Supply | AC 110V / 220V, 50/60Hz, customizable |
| Machine Material | SUS304 stainless steel and aluminum alloy structure |
| Line Integration | Filling, capping, coding, inspection and packaging lines |
How Transparent Label Detection Works
The machine coordinates bottle feeding, label-gap detection, servo label dispensing and bottle rotation to complete accurate clear-label application.
Bottle Feeding
Round bottles enter the labeling station with controlled spacing.
Label-gap Detection
The transparent label sensor identifies the gap between clear labels on the backing material.
Label Dispensing
The servo system releases the preset label length at the correct time.
Wrap & Position
The bottle rotates to apply the label smoothly; positioning can be added when orientation is required.
Available Custom Options
Optional devices can be selected according to bottle shape, clear-label material, positioning method and inspection requirements.
Fixed-position Labeling
Align the label with bottle marks, caps, seams or printed features before application.
Date Coding Printer
Print production date, batch number or expiry information during labeling.
Vision Inspection
Check label presence, position and selected print information after labeling.
Reject System
Automatically remove products with missing, misplaced or defective labels.
Connection Conveyor
Match the labeling machine with upstream and downstream packaging equipment.
Custom Bottle Fixtures
Guide and positioning parts can be adapted for special bottle shapes or unstable containers.
Watch the Transparent Labeling Machine in Operation
The video loads only after clicking the play button to help maintain page speed.

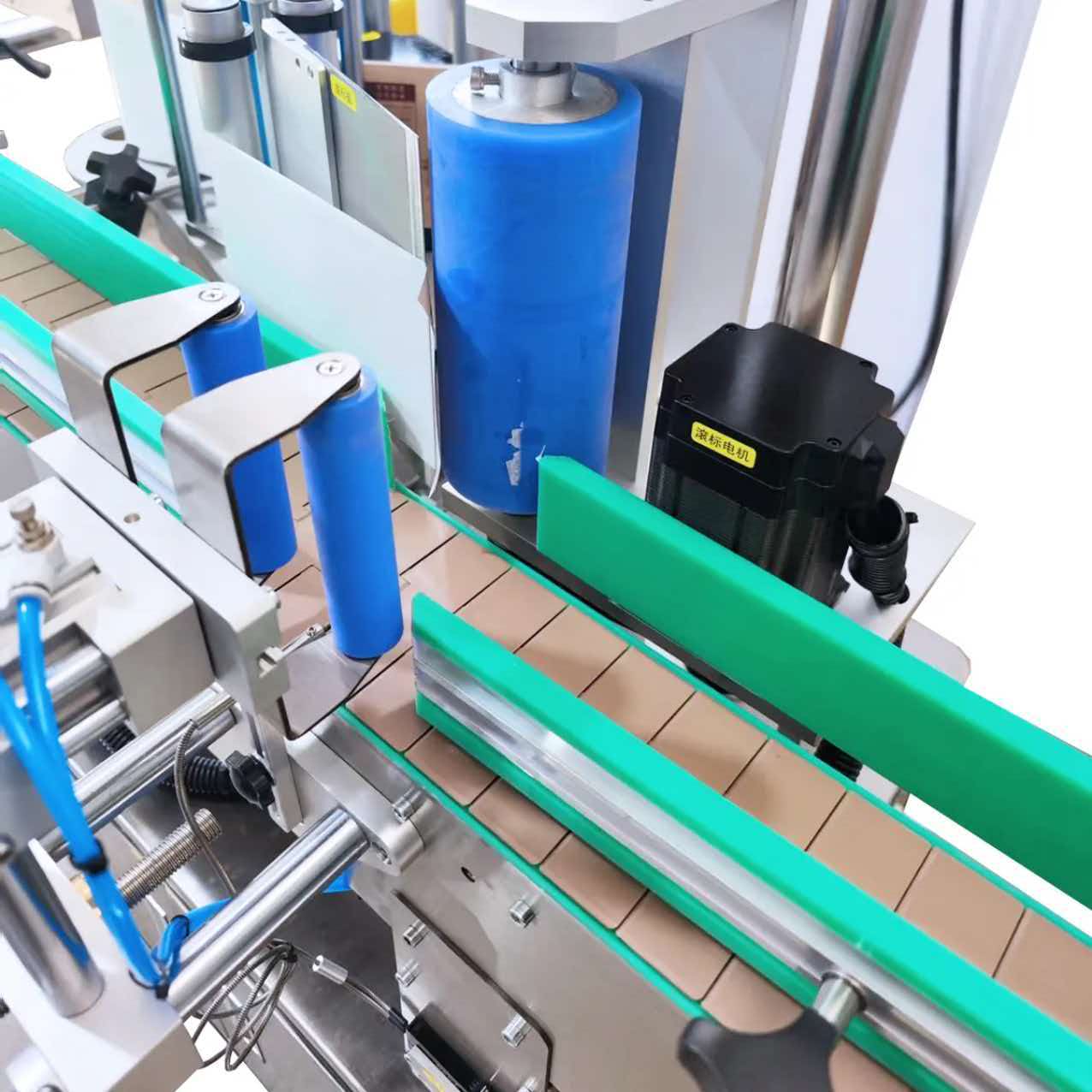

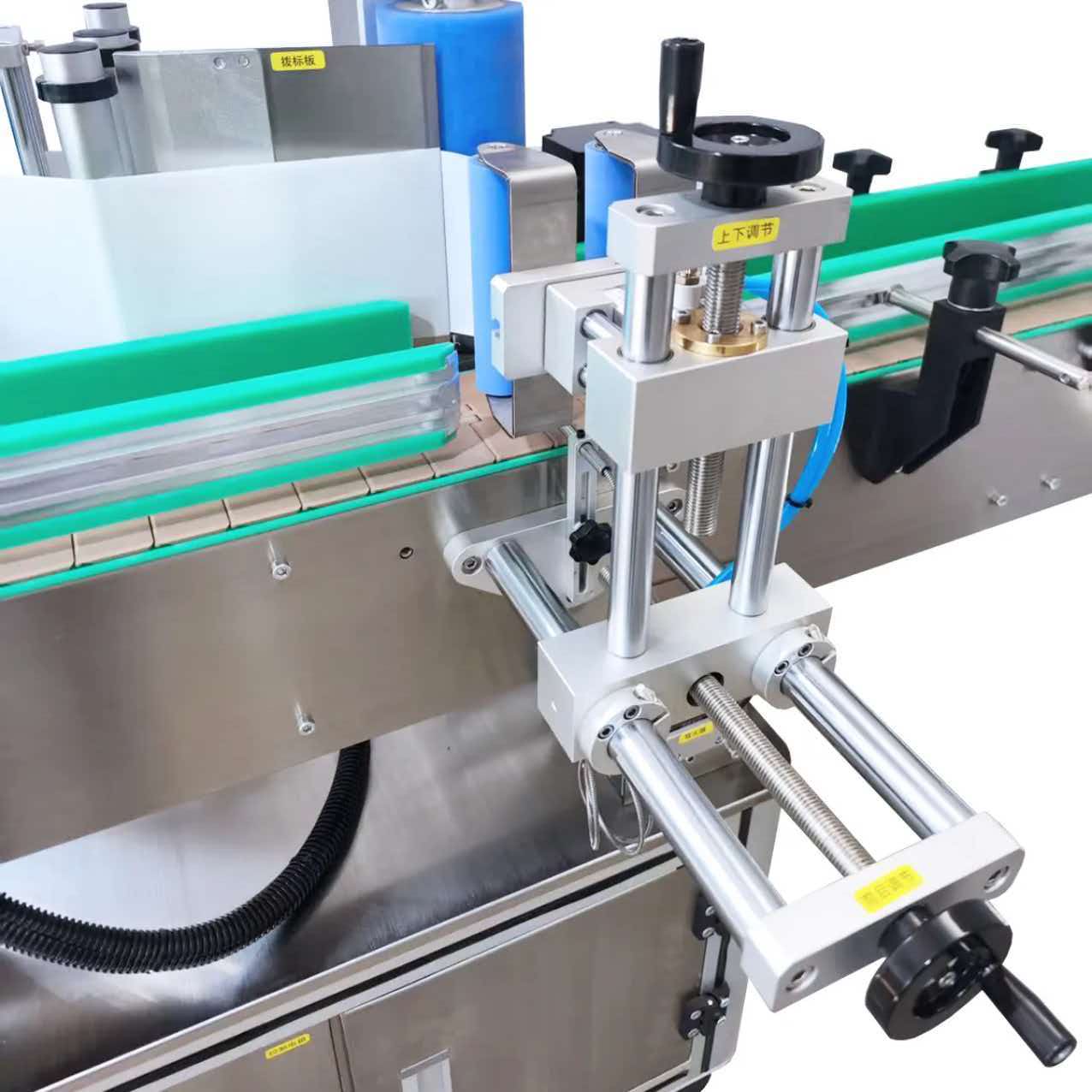

Machine Details and Transparent Label Applications
Review the machine structure, transparent label sensor, labeling station and product application details.
Explore Other Labeling Machines
Different bottle shapes, label materials and positioning requirements need different labeling configurations. Explore related machines within our labeling machine range.
Automatic Positioning Labeling Machine
For round bottles using conventional labels that must align with a bottle mark, cap or printed feature.
View Machine →Horizontal Round Bottle Labeling Machine
For unstable small cylindrical products such as vials, ampoules, tubes and slim bottles.
View Machine →Automatic Double-sided Labeling Machine
For front-and-back labels on flat, square and oval bottles in continuous production.
View Machine →Automatic Flat Top Labeling Machine
For applying labels to cartons, pouches, lids, trays and other flat product surfaces.
View Machine →Common Questions About Transparent Labeling Machines
These answers help buyers evaluate whether a clear-label sensor and positioning system are required for their packaging project.
Why is a transparent label sensor required?
Clear labels and clear backing material can be difficult for standard photoelectric sensors to distinguish. A transparent label sensor detects the label gap more reliably, helping prevent missing labels, repeated dispensing and inconsistent label length.
What is the difference between this machine and a positioning labeling machine?
A standard positioning labeler focuses on orienting the bottle before labeling. This model can also support bottle positioning, but its key additional feature is a dedicated sensor for detecting transparent labels.
Can this machine also use ordinary paper labels?
Yes. The machine can handle many conventional paper and opaque film labels, but the final sensor setup should be confirmed using actual label samples.
Can it label transparent glass or PET bottles?
Yes. It is suitable for transparent glass and PET round bottles. Reflective surfaces, bottle shape and label material should be evaluated during sample testing.
Can the label be applied at a fixed position?
Yes. A bottle-positioning mechanism can be added when the label must align with a bottle mark, cap, seam, handle or printed feature.
Can it connect with a filling and capping line?
Yes. The machine can integrate with filling machines, capping machines, coding equipment, inspection systems and downstream packaging machines.
What samples should I provide before ordering?
Please provide several bottles, a roll of the actual transparent labels, label drawings, the required labeling position and your expected production speed. Real samples help confirm sensor performance and machine configuration.
Can one machine handle different bottle and label sizes?
Yes, within the designed adjustment range. Guide rails, bottle spacing, labeling parameters and positioning components can be adjusted or changed for different products.
