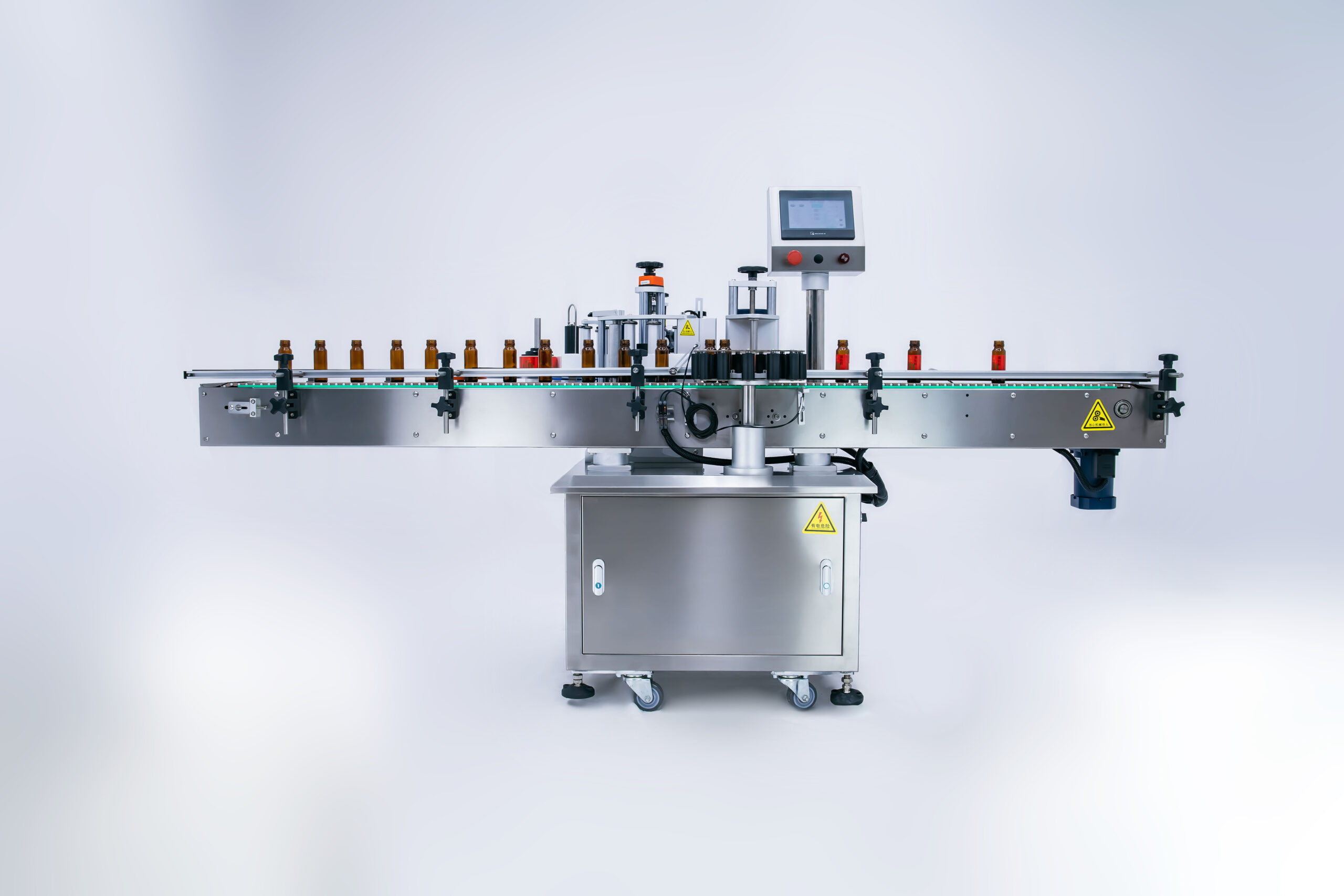

Automatic Star Wheel Round Bottle Labeling Machine
Designed for continuous high-speed labeling of round bottles, this automatic star wheel labeling machine controls bottle spacing and transfer through a customized indexing wheel. It supports stable wrap-around labeling for beverage, pharmaceutical, cosmetic and daily chemical production lines.
High-speed Labeling with Stable Bottle Positioning
The automatic star wheel labeling machine is built for round bottles and cylindrical containers that require stable feeding and accurate label placement at higher production speeds.
Compared with standard conveyor labeling systems, a customized star wheel controls bottle pitch and transfer timing more consistently. This helps reduce irregular spacing, bottle collision and unstable movement when production speed increases.
Why Use a Star Wheel for High-speed Bottle Labeling?
At higher line speeds, unstable bottle spacing can cause vibration, missed labels and inconsistent label placement. A customized star wheel transfers each bottle through a controlled position and timing cycle.
Controlled Bottle Spacing
Each star wheel pocket separates and transfers one bottle at a fixed pitch, reducing irregular gaps between products.
More Stable High-speed Transfer
The bottle remains guided during feeding and labeling, helping reduce shaking, tipping and unstable rotation at higher conveyor speeds.
Consistent Label Timing
Controlled bottle arrival allows the sensor and servo labeling head to dispense each label at a more repeatable moment.
What Products Can This Machine Label?
This machine is suitable for round containers where high-speed feeding and stable label application are required.
Beverage Bottles
Water bottles, juice bottles and round beverage containers.
Cosmetic Bottles
Lotion bottles, serum bottles and cylindrical cosmetic packaging.
Pharmaceutical Bottles
Medicine bottles, health product bottles and small cylindrical containers.
Chemical Bottles
Detergent, lubricant, reagent and other round chemical containers.
When Is a Star Wheel Labeling Machine Actually Necessary?
A star wheel system is most valuable when bottle transfer stability becomes the limiting factor in labeling speed or repeatability.
High and Stable Production Speed
Consider a star wheel system when bottles must enter the labeling station at a controlled pitch and irregular conveyor spacing starts affecting label timing.
Repeatable Bottle Dimensions
Star wheel labeling is most efficient when bottle diameter and profile remain consistent during production, allowing customized pockets to guide each container accurately.
Frequent Bottle Changeovers Are Limited
If a production line changes between many bottle diameters every day, a standard conveyor labeler may be more flexible because significantly different bottles can require replacement star wheels.
Designed for High-speed Round Bottle Labeling
The star wheel system improves feeding stability and helps maintain accurate label placement during high-speed operation.
High-speed Operation
Designed for production lines that need faster labeling output than standard semi-automatic or low-speed machines.
Star Wheel Positioning
Controls bottle spacing and movement to improve labeling stability and reduce bottle shaking.
Accurate Labeling
Servo motor control supports precise label feeding and consistent label placement.
Automatic Feeding
Works with upstream and downstream conveyors for continuous production.
Touchscreen Control
PLC and touchscreen operation make speed, label length and product settings easy to adjust.
Flexible Customization
Can be customized according to bottle diameter, label size and production layout.
Star Wheel Labeler vs. Standard Conveyor Labeling Machine
A star wheel labeling machine is designed for controlled bottle spacing and stable high-speed transfer, while a standard conveyor labeler generally offers easier size adjustment and greater flexibility for frequent product changeovers.
| Selection Factor | Standard Conveyor Labeler | Star Wheel Labeler | Fixed-point Positioning Labeler |
|---|---|---|---|
| Main Purpose | General round bottle labeling | Stable high-speed bottle transfer | Label alignment to a fixed bottle reference |
| Bottle Spacing | Controlled mainly by conveyor and spacing devices | Controlled by customized star wheel pockets | Depends on machine structure and orientation mechanism |
| Product Changeover | Usually more flexible | May require replacement star wheels | Depends on bottle reference and positioning method |
| Best For | Low-to-medium output and frequent size changes | Continuous high-speed production with repeatable bottle sizes | Logos, seams, handles or fixed label orientation |
Need fixed-point bottle orientation instead of only controlled bottle transfer? View our position labeling machine →
What to Confirm Before Choosing a Star Wheel Labeling Machine
The star wheel, labeling head and conveyor layout should be configured according to actual bottle samples and production requirements.
Bottle Diameter and Shape
The star wheel pockets are normally manufactured according to the bottle diameter, height and container profile.
Required Line Speed
Provide the target bottles per minute so the feeding pitch, conveyor speed and labeling-head configuration can be evaluated.
Label Size and Material
Label length, width and material affect dispensing speed, sensor type and wrap-around application stability.
Product Changeover
If several bottle diameters are used, confirm how frequently products change and whether replaceable star wheels are required.
Machine Parameters
Final specifications can be adjusted according to bottle size, label size and production speed requirements.
| Machine Type | Automatic star wheel labeling machine for round bottles |
|---|---|
| Labeling Type | High-speed round bottle wrap-around labeling; optional fixed-point orientation can be configured for specific projects |
| Suitable Products | Round bottles, cylindrical containers and stable round packaging products |
| Main Advantage | High-speed labeling with star wheel positioning |
| Labeling Speed | Configured according to bottle diameter, label size and production-line requirements. Please contact us with the target bottles per minute. |
| Bottle Size Range | Customized according to actual bottle diameter, height and container profile. |
| Label Size Range | Customized according to label width, label length and wrap-around requirements. |
| Star Wheel Configuration | Customized pockets manufactured according to actual bottle samples or confirmed bottle drawings. |
| Control System | PLC + touchscreen |
| Drive System | Servo motor labeling control |
| Labeling Accuracy | Approx. ±0.5–1 mm depending on bottle and label material |
| Machine Size | 2000 × 1200 × 1300 mm |
| Machine Weight | Approx. 180 kg |
| Power Supply | 220V / 50Hz or customized |
| Optional Devices | Date coding printer, transparent label sensor, vision inspection and collection table |
How the Star Wheel Labeling System Works
Bottle feeding, spacing, label detection and wrap-around application are synchronized to support continuous production.
1. Bottle Infeed
Bottles enter the machine from the upstream conveyor.

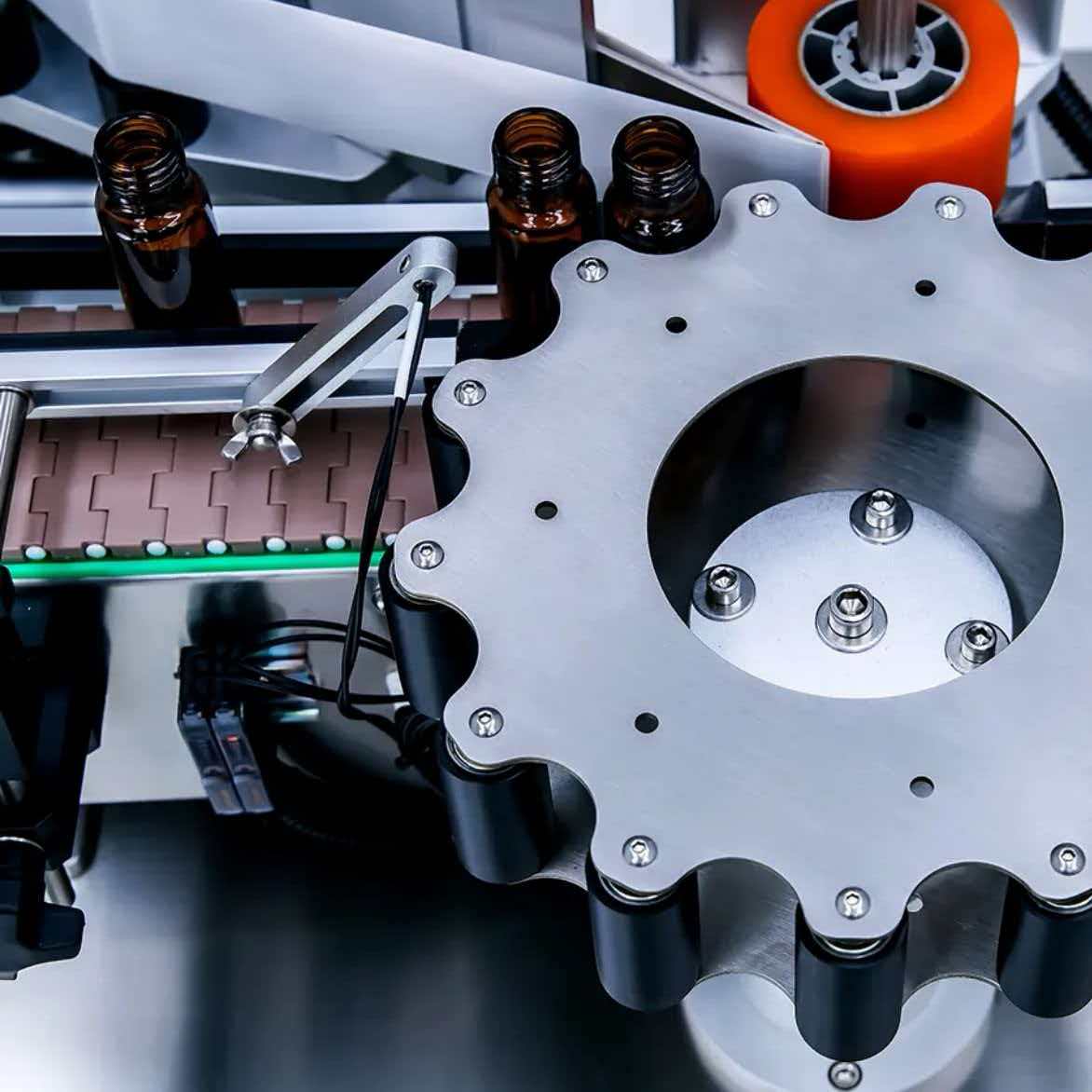

2. Star Wheel Separation
Each bottle enters a dedicated pocket that controls spacing and transfer timing.
3. Label Dispensing
The sensor detects the bottle and the servo labeling head releases the preset label length.

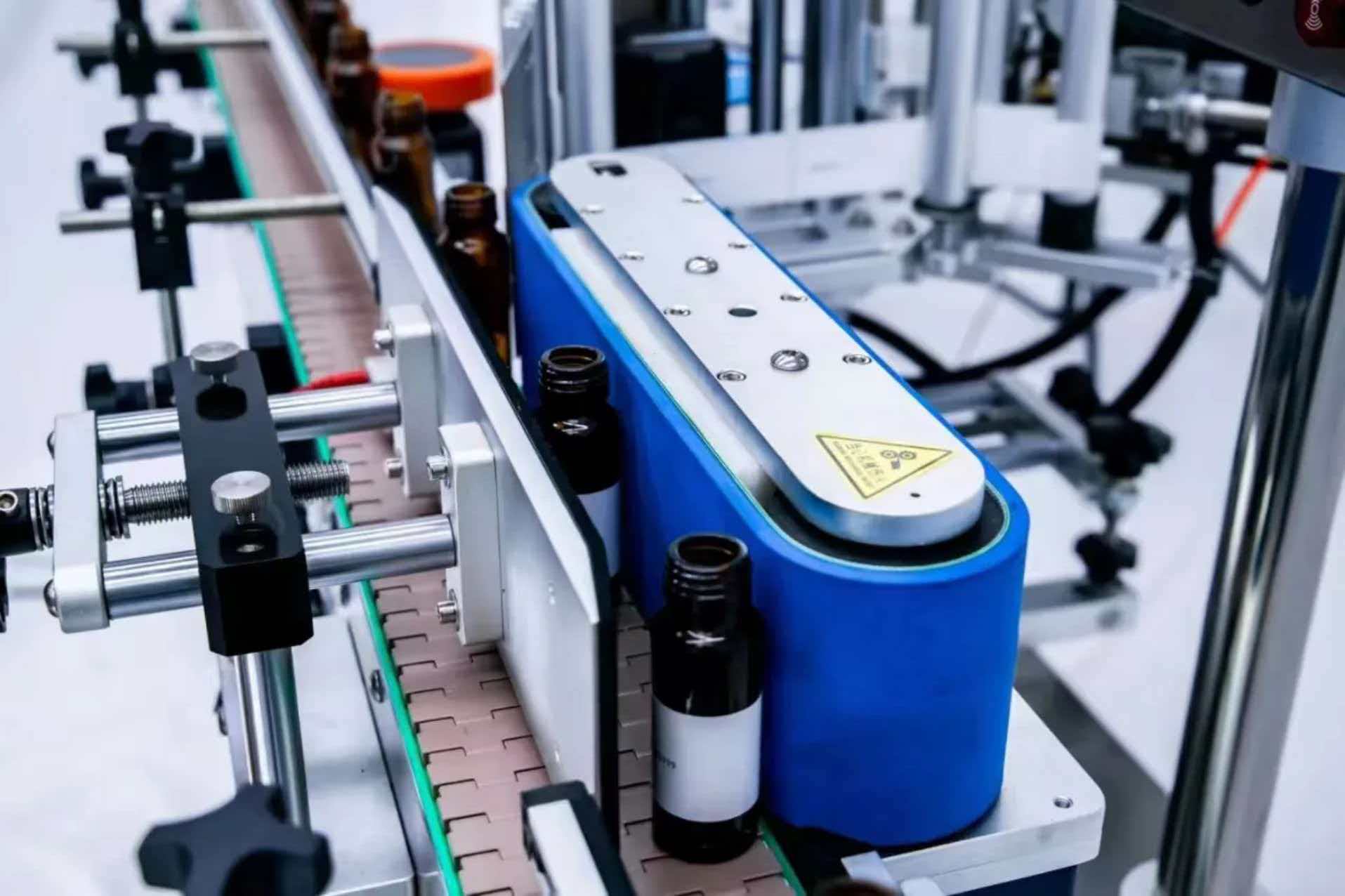

4. Wrap-around Application
The bottle rotates through the labeling station before returning to the downstream conveyor.
Available Custom Options
Optional modules can be selected according to bottle material, label type and production line requirements.

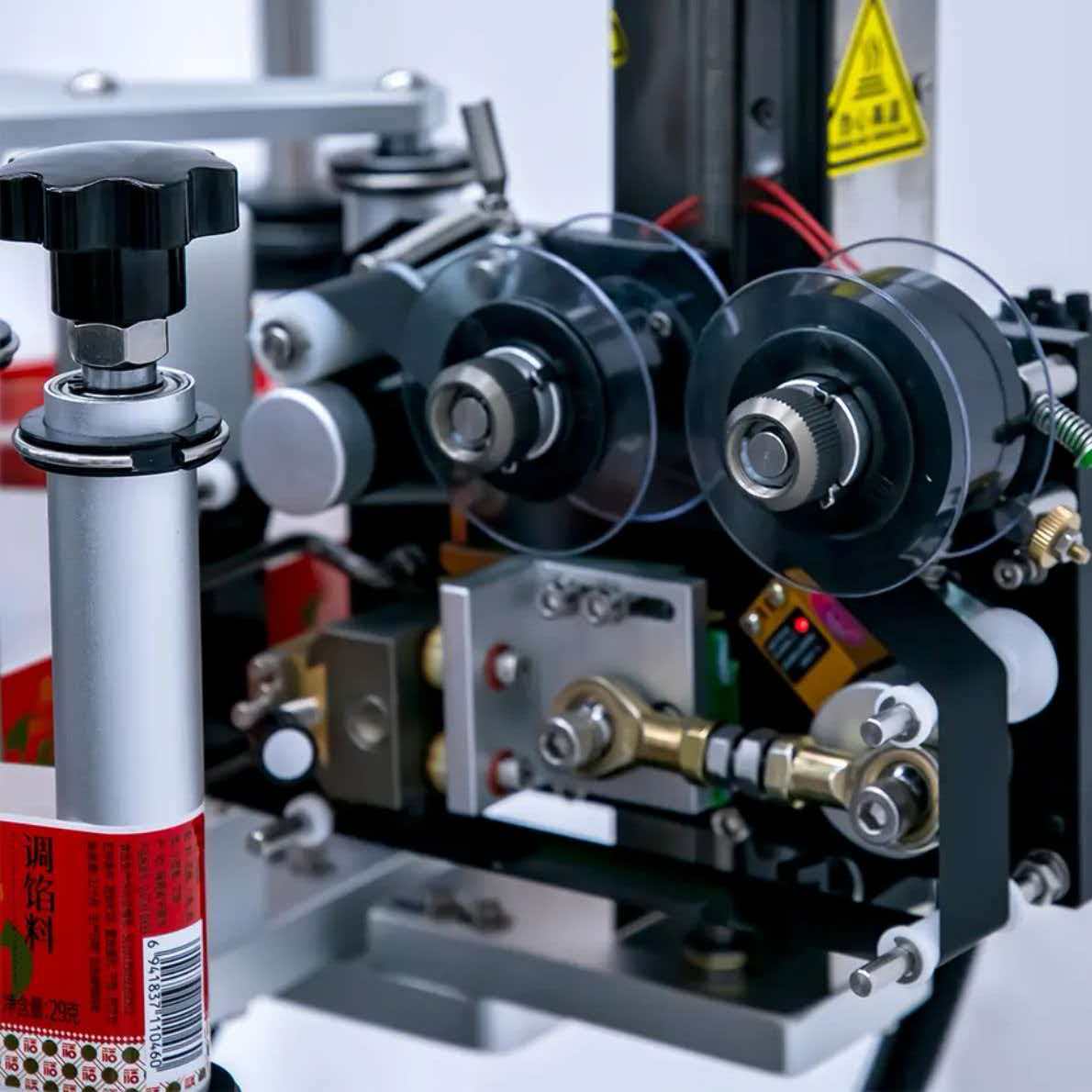

Date Coding Printer
Print batch number, production date or expiry date during labeling.
Transparent Label Sensor
Suitable for clear labels used in cosmetic or premium packaging.
Vision Inspection
Check label presence, position and labeling quality after application.
Customized Star Wheel
Star wheel can be customized according to bottle diameter and shape.
Automatic Collection
Collect finished bottles and improve production line operation.
Line Integration
Connect with filling, capping, coding and packing equipment.
Watch the Machine in Operation
To keep the page loading fast, the video loads only after clicking the play button.

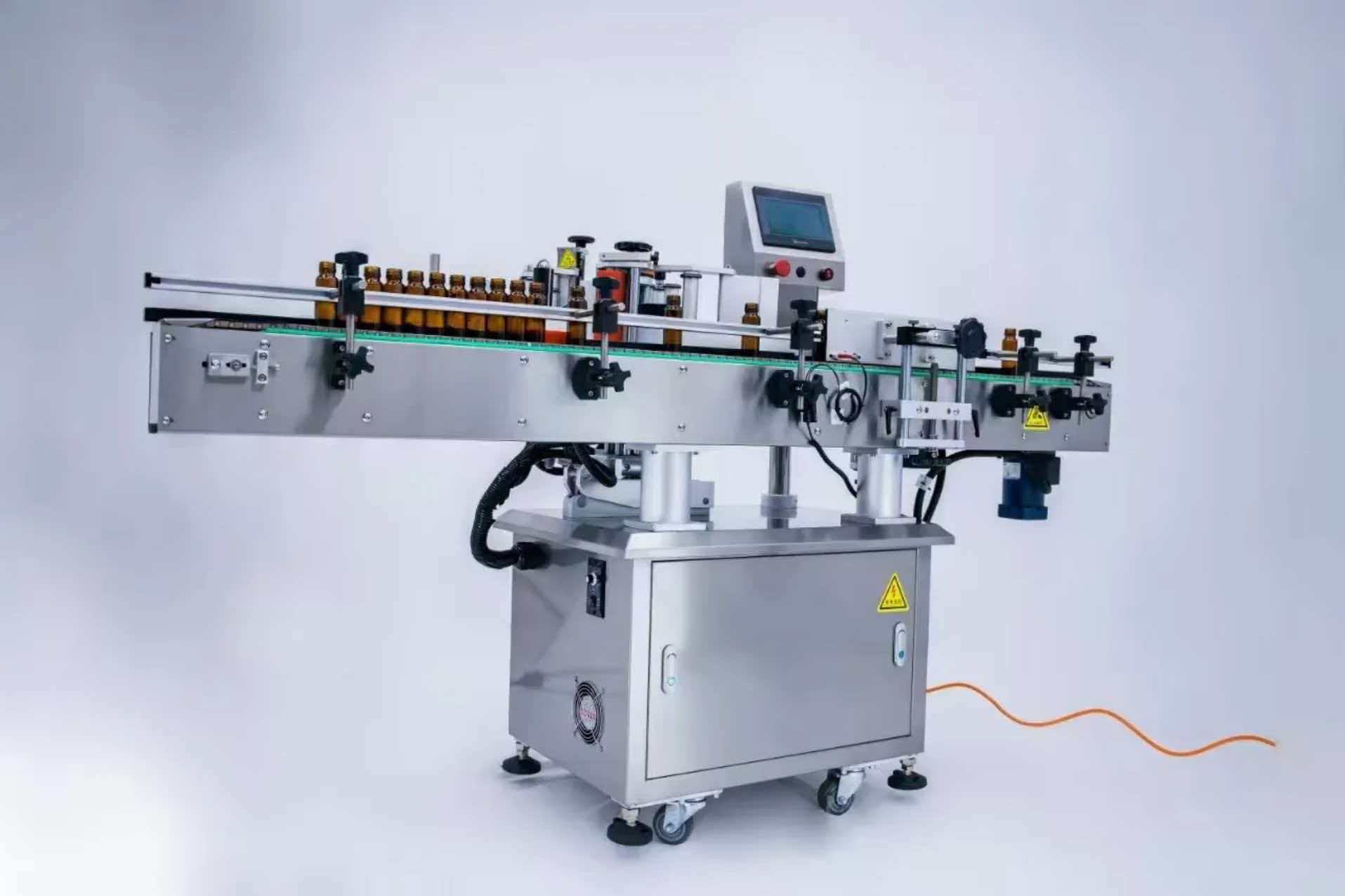

Product Details and Machine Structure
Review the machine structure, star wheel feeding mechanism and labeling components to better evaluate the equipment configuration.
Explore Other Round Bottle Labeling Machines
Different bottle sizes, label materials and positioning requirements may require a different labeling configuration.
Positioning Labeling Machine
For round bottles requiring labels to align with a logo, seam, cap or fixed reference point.
View Machine →Transparent Label Round Bottle Labeler
Equipped with a clear-label sensor for transparent self-adhesive labels on glass and PET bottles.
View Machine →Horizontal Round Bottle Labeler
Designed for unstable small cylindrical products such as vials, ampoules, tubes and slim bottles.
View Machine →Star Wheel & Round Bottle Labeling Guides
Explore practical guidance on star wheel operation, bottle transfer, labeling methods, product positioning and machine selection.
Why Do Star Wheels Wear Out Faster on High-Speed Labeling Lines?
Learn how bottle-entry impact, pocket geometry, guide adjustment, synchronization and material selection can accelerate star wheel wear during high-speed production.
Read Engineering Guide →Position Labeling Machine vs Wrap-around Labeling Machine
Compare standard wrap-around labeling, fixed-point bottle orientation and application requirements before selecting a labeling method.
Read Comparison Guide →Position Labeling Machine Guide
Understand when bottle orientation and fixed-point label placement require a dedicated positioning labeling system.
Read Positioning Guide →Common Questions About Star Wheel Labeling Machines
These answers help buyers quickly evaluate whether this machine is suitable for their round bottle labeling project.
What is a star wheel labeling machine?
It is a round bottle labeling machine that uses a star wheel to control bottle position and spacing during labeling.
Is one star wheel suitable for different bottle diameters?
A star wheel is normally designed for a defined bottle diameter and shape. Products with similar dimensions may share one wheel, while significantly different bottles usually require replaceable customized star wheels.
What labeling speed can a star wheel labeling machine achieve?
The actual speed depends on bottle diameter, label size, bottle stability, star wheel pitch and the required labeling accuracy. Please provide the target bottles per minute so the machine configuration can be evaluated. For high-speed lines, also see our guide to star wheel wear and bottle-transfer problems .
How does the machine change between different bottle sizes?
Bottles with significantly different diameters or profiles may require a replacement star wheel and corresponding guide adjustments. The changeover method should be confirmed according to the number of bottle formats and how frequently production changes.
When should I choose a star wheel labeler instead of a standard conveyor labeler?
A star wheel system is more suitable when the production line requires controlled bottle spacing, stable high-speed transfer and consistent bottle arrival at the labeling station.
What bottle samples are required before manufacturing the star wheel?
Please provide actual bottles, detailed bottle drawings or accurate dimensions. Physical bottle samples are recommended for confirming pocket shape, clearance and transfer stability.
Can it support transparent labels?
Yes. A transparent label sensor can be added according to label material.
Can it integrate with filling and capping machines?
Yes. It can be connected with filling, capping, coding and packaging lines.
What information should I provide for quotation?
Please provide bottle size, label size, expected speed, bottle photos and label position requirements.
