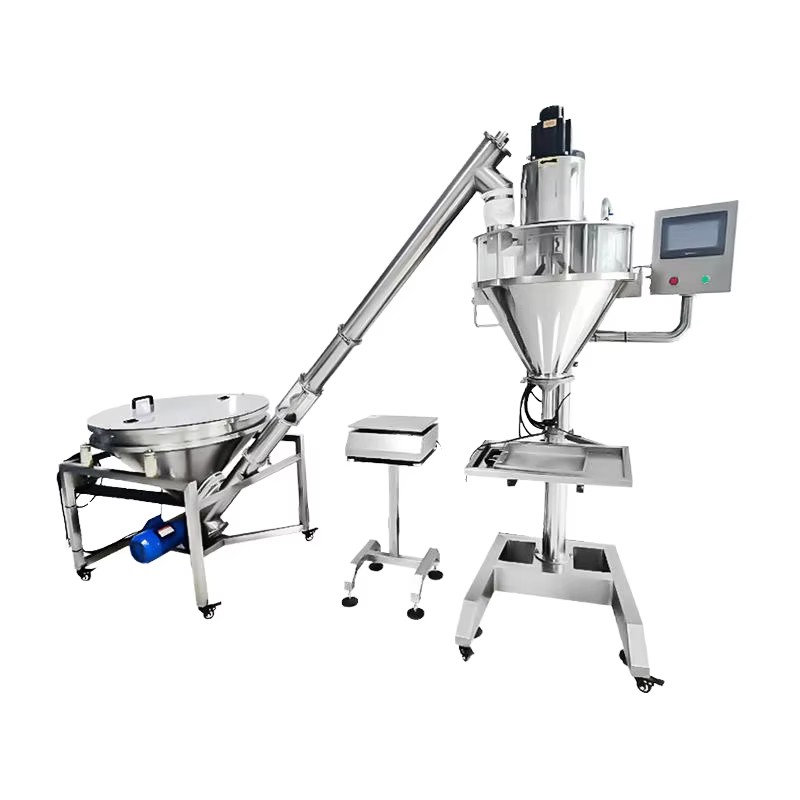

Semi-automatic Vertical Powder Filling Machine
Designed for accurate powder dosing and filling, this semi-automatic vertical powder filling machine is suitable for food powder, chemical powder, pharmaceutical powder and daily-use powder products in bottles, jars, cans and bags.
Flexible Powder Filling for Small and Medium Production
The semi-automatic vertical powder filling machine uses an auger screw dosing system to fill powder products with controlled volume and stable accuracy. It is suitable for factories that need flexible filling without investing in a full automatic filling line at the early stage.
The machine can work with bottles, jars, cans, pouches and other containers. It is especially useful for customers handling multiple powder products or different packaging sizes.
What Products Can This Machine Fill?
This machine is suitable for free-flowing and some non-free-flowing powder products depending on powder characteristics.
Food Powder
Flour, milk powder, coffee powder, seasoning powder, protein powder and spice powder.
Chemical Powder
Detergent powder, additive powder, industrial powder and chemical powder materials.
Pharmaceutical Powder
Medicine powder, healthcare powder and laboratory powder filling applications.
Daily-use Powder
Talcum powder, cosmetic powder, cleaning powder and household powder products.
Designed for Accurate and Flexible Powder Filling
The machine focuses on simple operation, stable powder dosing and flexible use for different containers.
Auger Screw Dosing
Controls powder filling volume by screw rotation for stable and repeatable filling.
Flexible Filling Range
Different screw sizes can be selected according to filling weight and powder density.
Easy Operation
Touchscreen control makes filling weight, speed and parameters easy to adjust.
Foot Pedal or Sensor Filling
Supports manual triggering or sensor-based filling according to production habit.
Stainless Steel Contact Parts
Material contact parts can use stainless steel for clean and reliable powder handling.
Compact Vertical Design
Space-saving structure suitable for workshops, labs and small production rooms.
Machine Parameters
Parameters below are based on common industry configuration and can be adjusted according to powder material and filling volume.
| Machine Type | Semi-automatic vertical powder filling machine |
|---|---|
| Filling Method | Auger screw dosing |
| Suitable Material | Food powder, chemical powder, pharmaceutical powder and daily-use powder |
| Filling Range | 5–5000 g, depending on screw configuration |
| Filling Accuracy | Approx. ±1%, depending on powder flowability and filling weight |
| Filling Speed | 10–40 fills/min, depending on operator and filling volume |
| Hopper Volume | Approx. 25–50 L, customizable |
| Control System | PLC + touchscreen |
| Power Supply | 220V / 50Hz or customized |
| Machine Size | Approx. 800 × 700 × 1900 mm |
| Machine Weight | Approx. 120 kg |
| Machine Material | SUS304 stainless steel contact parts |
Available Custom Options
Optional parts can be selected according to powder type, container type and production workflow.
Different Auger Screws
Use different screw sizes for different filling weight ranges.
Stirring System
Improve powder feeding stability for certain non-free-flowing powders.
Dust Collection Device
Reduce powder dust during filling and improve workshop cleanliness.
Level Sensor
Monitor powder level inside the hopper for easier operation.
Conveyor Connection
Can be connected with conveyor, capping machine or labeling machine later.
Customized Hopper
Hopper size and material can be customized according to production needs.
Watch the Machine in Operation
To keep the page loading fast, the video loads only after clicking the play button.

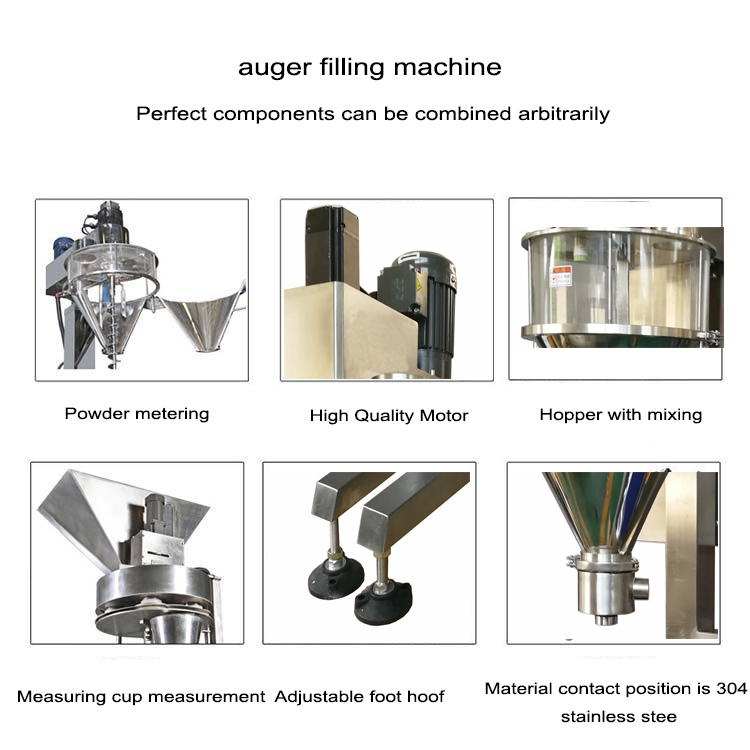

Product Details and Machine Structure
Refer additional machine images to help you choose machine easier.
Common Questions About Powder Filling Machines
These answers help buyers quickly evaluate whether this machine is suitable for their powder product.
What powders can this machine fill?
It can fill food powder, chemical powder, pharmaceutical powder, cosmetic powder and other powder products.
What containers can it fill into?
It can fill bottles, jars, cans, pouches and other open containers depending on the filling setup.
What is the filling range?
Common filling range is 5–5000 g, depending on screw configuration and powder density.
Can it fill non-free-flowing powder?
Some non-free-flowing powders can be filled with proper stirring and auger configuration. Testing is recommended for special powders.
Can it connect with other machines?
Yes. It can later connect with conveyor, capping machine, labeling machine and other packaging equipment.
Is it suitable for small businesses?
Yes. It is a practical choice for small and medium production because it is flexible, compact and cost-effective.
Can the hopper size be customized?
Yes. Hopper size and structure can be customized according to production capacity and powder characteristics.
What information should I provide for quotation?
Please provide powder type, filling weight, container type, expected capacity and photos or videos of your product.
Need a Powder Filling Solution?
Send us your powder type, filling weight, container size and expected capacity. We will help evaluate a suitable powder filling machine configuration.
