Automatic Gear Pump Multi-nozzles Paste Filling Machine
Designed for fluid and paste filling applications, this automatic gear pump filling machine supports multiple nozzles for higher production capacity and stable filling performance for medium-viscosity materials.
Automatic Filling Solution for Fluid and Paste Products
The automatic gear pump multi-nozzles paste filling machine uses gear pump metering to fill liquid, semi-liquid and paste products with stable volume control. It is suitable for manufacturers who need efficient bottle filling for daily chemical, cosmetic, food and industrial liquid products.
The machine can be configured with different filling nozzles according to production capacity. It can also connect with capping, labeling and coding equipment to build a complete bottle packaging line.
What Products Can This Machine Fill?
This machine is suitable for a wide range of low to medium viscosity fluid and paste materials.
Cosmetic Paste
Cream, lotion, gel, shampoo, conditioner and personal care products.
Daily Chemical Liquid
Liquid soap, detergent, hand sanitizer, cleaner and household chemical products.
Food Sauce
Light sauce, syrup, honey-like liquid, seasoning sauce and similar materials after evaluation.
Industrial Fluid
Lubricating liquid, additive liquid and other non-corrosive industrial fluids.
Designed for Efficient Multi-nozzle Paste Filling
The machine focuses on practical automatic production, stable gear pump filling and flexible configuration for different bottle sizes.
Gear Pump Filling
Gear pump metering provides stable flow and repeatable filling volume for many liquid and paste products.
Multi-nozzle Design
Multiple filling heads can improve production capacity and support continuous bottle filling lines.
Anti-drip Filling Nozzles
Anti-drip nozzle design helps keep bottle surfaces cleaner and reduces material waste.
Touchscreen Control
PLC and touchscreen make filling volume, speed and operating parameters easy to adjust.
Stainless Steel Structure
Stainless steel contact parts support reliable production and easier cleaning.
Line Integration
Can be connected with bottle feeding, capping, labeling and packaging equipment.
Machine Parameters
Final specifications can be customized according to material viscosity, filling volume, bottle size and required output.
| Machine Type | Automatic Gear Pump Multi-nozzles Paste Filling Machine |
|---|---|
| Filling Method | Gear pump metering filling |
| Suitable Material | Fluid, gel, semi-liquid and paste products |
| Filling Range | Approx. 50–5000 ml, customizable according to pump and nozzle configuration |
| Filling Accuracy | Approx. ±1%, depending on product viscosity and filling volume |
| Filling Speed | Depends on nozzle quantity, filling volume and material viscosity |
| Nozzle Configuration | Multi-nozzle system; quantity customizable |
| Control System | PLC + touchscreen |
| Suitable Containers | Bottles, jars and similar open-mouth containers |
| Machine Material | SUS304 stainless steel; SUS316L contact parts optional |
| Power Supply | 220V / 50Hz or customized |
| Line Connection | Can connect with capping, labeling, coding and packing equipment |

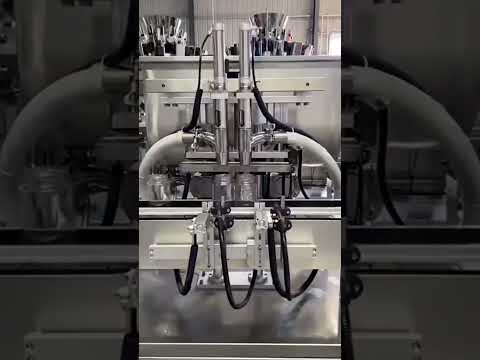

Watch the Machine in Operation
To keep the page loading fast, the YouTube Shorts video loads only after clicking the play button.
Automatic Bottle Filling Process
The machine supports a continuous workflow for bottle filling and downstream packaging connection.
Bottle Feeding
Bottles are delivered to the filling area through the conveyor system.
Material Pumping
Gear pumps transfer product from the tank to the filling nozzles.
Multi-nozzle Filling
Several bottles can be filled at the same time according to nozzle configuration.
Next Process
Filled bottles can move to capping, labeling, coding or packing stations.
Available Custom Options
Configuration can be adjusted according to material properties and production capacity requirements.
Customized Nozzle Quantity
Filling heads can be customized according to output requirement and bottle size.
Material Tank
Stainless steel storage tank with mixing or heating options can be discussed.
Anti-drip System
Anti-drip nozzle design helps reduce leakage and keep bottles clean.
SUS316L Contact Parts
SUS316L can be selected for products requiring better corrosion resistance.
Capping Integration
Can connect with automatic cap sorting and capping machines.
Labeling Integration
Can connect with round bottle, double-sided or positioning labeling machines.
Product Details and Machine Structure

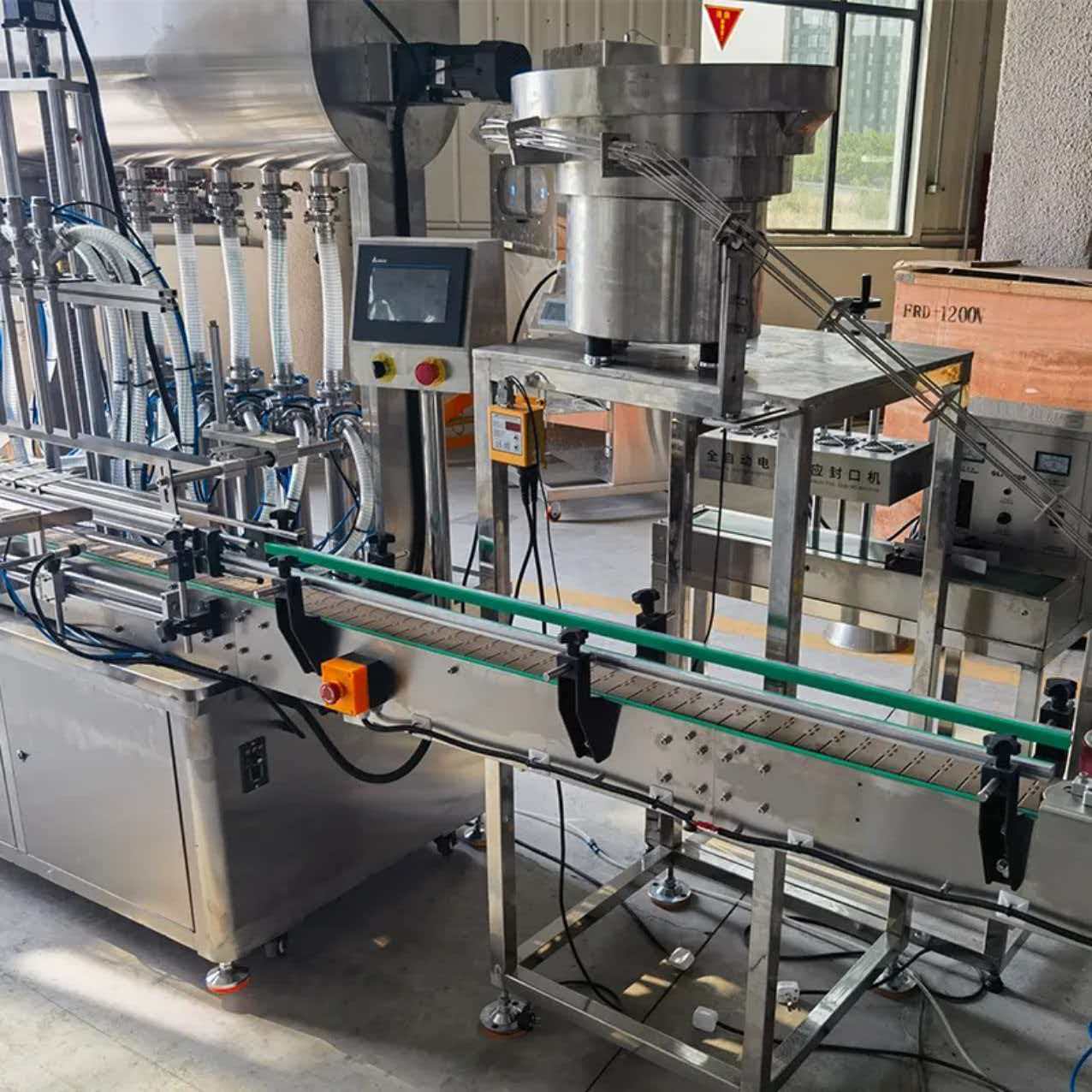

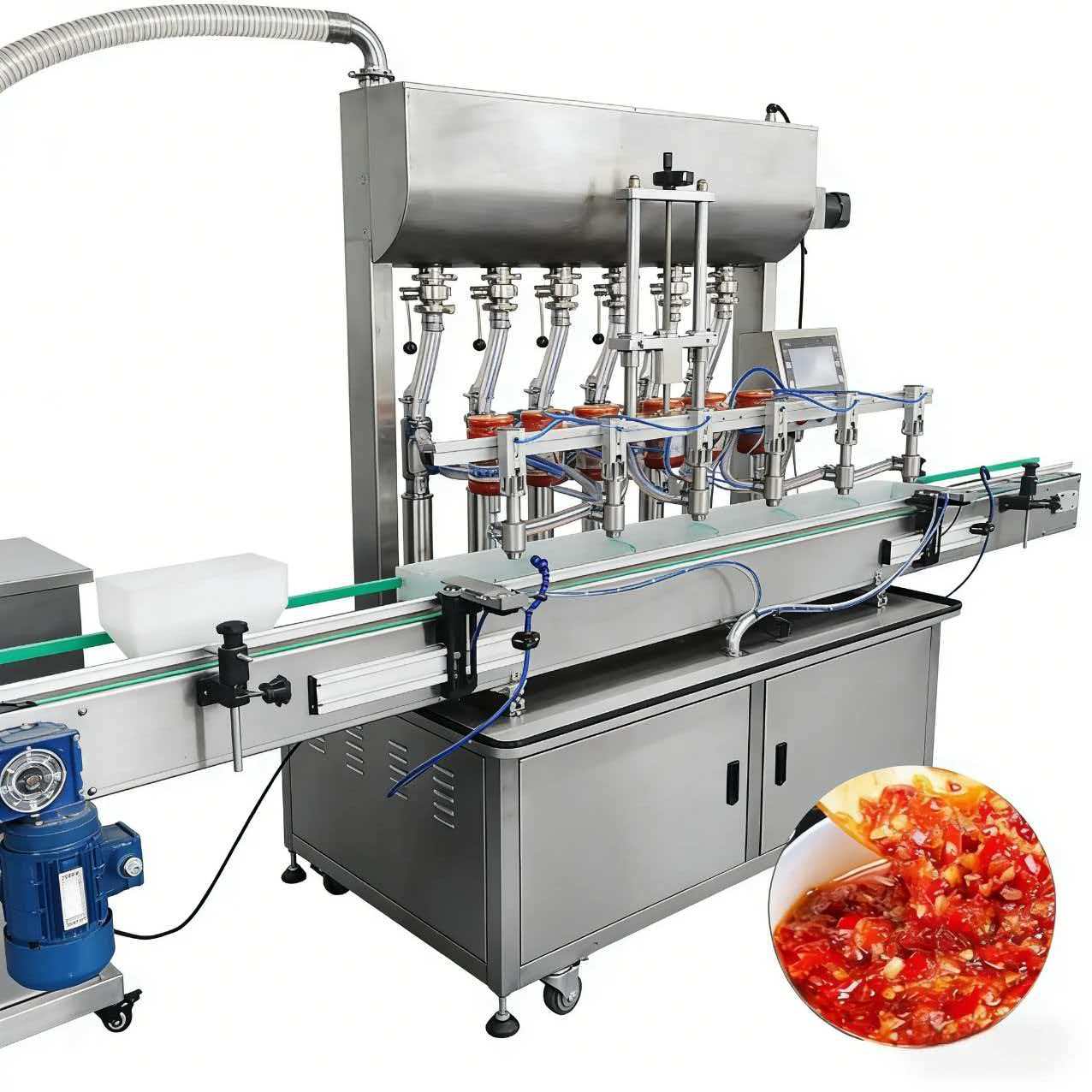

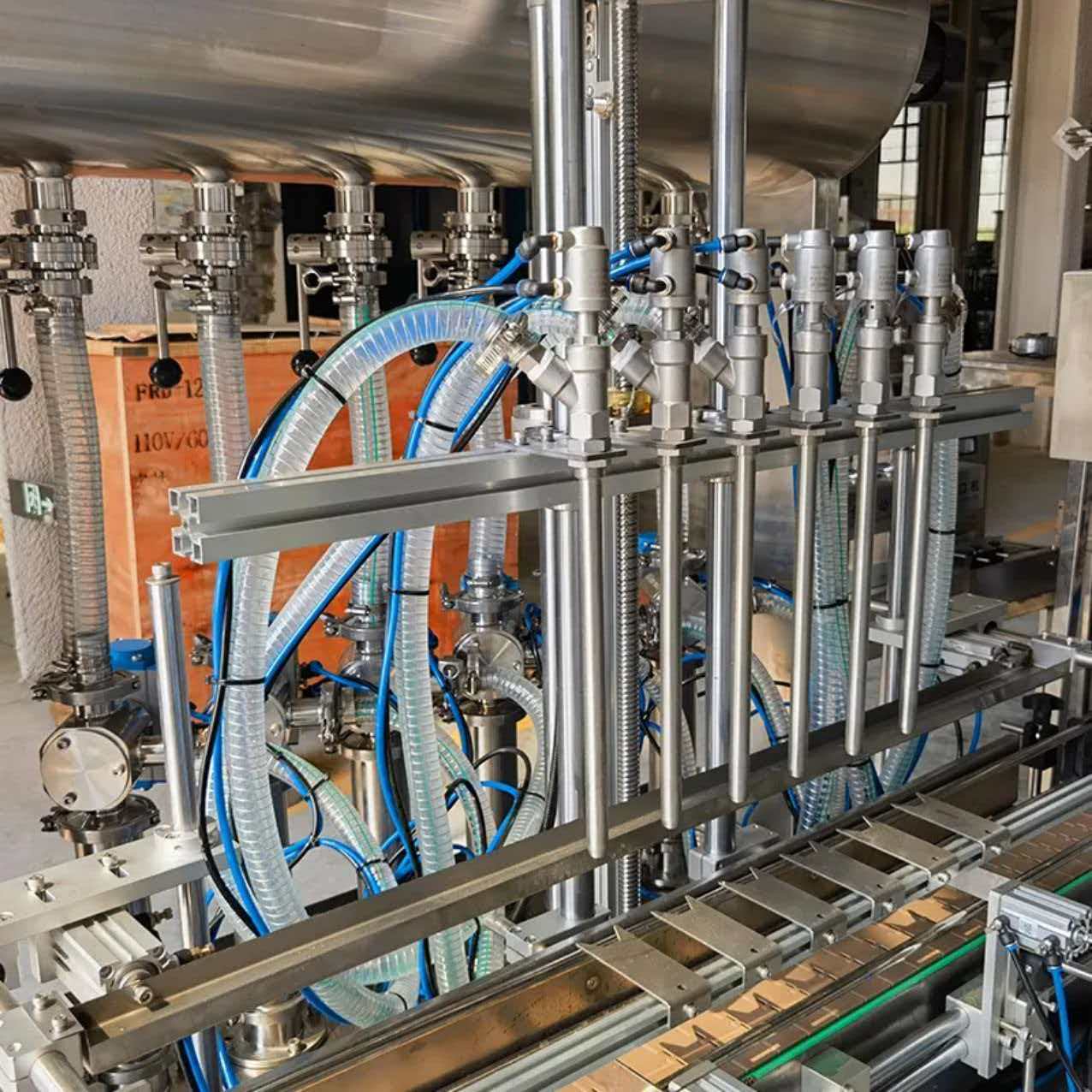

The gallery shows the filling line appearance, filling nozzles, gear pump system and machine structure.
Common Questions About Gear Pump Paste Filling Machines
These answers help buyers evaluate whether this filling machine is suitable for their material and production plan.
What products can this machine fill?
It can fill many fluid, gel, semi-liquid and paste products such as shampoo, lotion, detergent, sauce and daily chemical products.
What is the advantage of gear pump filling?
Gear pump filling provides stable flow control and is suitable for many liquid and medium-viscosity paste products.
Can the nozzle quantity be customized?
Yes. The number of filling nozzles can be customized according to production capacity and bottle size.
Can it fill high-viscosity products?
Some high-viscosity products can be filled after configuration evaluation. Product viscosity information is needed before quotation.
Can it connect with capping and labeling machines?
Yes. It can be integrated with capping, labeling, coding and packing machines to build a complete line.
What information is needed for quotation?
Please provide product type, viscosity, filling volume, bottle size, required capacity and product photos or videos.
Need a Paste or Liquid Filling Solution?
Send us your product type, viscosity, bottle size, filling volume and expected capacity. We will help evaluate a suitable gear pump filling machine configuration.
