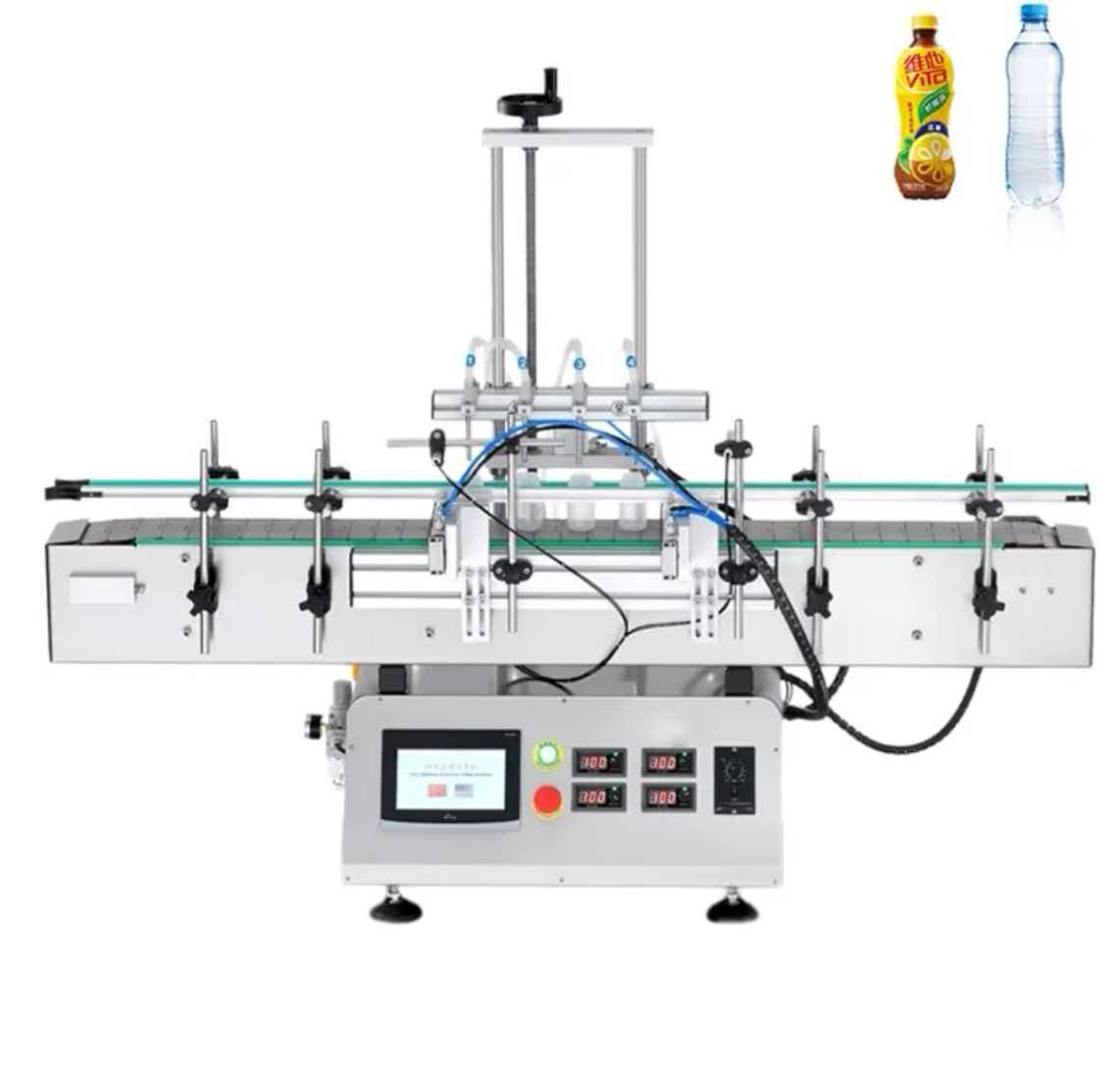

Automatic Desktop Liquid Filling Machine for Bottles
A compact automatic liquid filling machine designed for continuous bottle feeding and multi-head filling. The number of filling heads can be customized according to production capacity, bottle size and filling requirements, making the system suitable for a wide range of liquid and fluid packaging applications.
Compact Automatic Filling for Liquid Products
The automatic desktop liquid filling machine combines bottle conveying, product detection and multi-head filling in a compact machine format. Bottles move through the conveyor automatically and stop at the filling station according to the configured production sequence.
The machine shown on this page uses a four-head filling configuration. However, the number of filling heads is not limited to four and can be customized according to required production capacity and the actual filling application.
Different liquid products may require different pumps, tubing, filling nozzles and operating parameters. Final configuration should therefore be selected according to the product characteristics, bottle and required filling volume.
Liquid Filling Applications for Different Industries
The filling system can be configured for different liquid and fluid products according to product characteristics, bottle type, filling volume and production requirements.
Cosmetics & Personal Care
Suitable configurations can be evaluated for toner, liquid skincare products, shampoo, personal-care liquids and other cosmetic filling applications.
Food & Beverage
Can be configured for water, beverages and other suitable liquid food products according to the required filling process and product characteristics.
Daily Chemical Products
Suitable for many detergent, cleaning-liquid and household chemical filling applications when compatible pumps, tubing and filling components are selected.
Healthcare & Pharmaceutical
Filling configurations can be evaluated for suitable healthcare and pharmaceutical liquid products according to process and production requirements.
Designed for Flexible Automatic Liquid Filling
The compact system provides automatic bottle handling while allowing the filling configuration to be adapted to different production requirements.
Customizable Filling Heads
The number of filling heads can be configured according to required production capacity, bottle size and filling application. The machine shown on this page uses four filling heads.
Automatic Bottle Conveying
Bottles are transferred through the filling area by conveyor, reducing manual bottle handling during continuous production.
Product Detection
Bottle detection helps coordinate the conveyor and filling sequence so that filling starts when containers reach the required position.
Adjustable Filling Structure
The filling assembly can be adjusted according to bottle height and production requirements, helping accommodate different container formats.
Compact Machine Design
The desktop-format structure is suitable for production environments where floor space is limited or a compact packaging system is preferred.
Production Line Integration

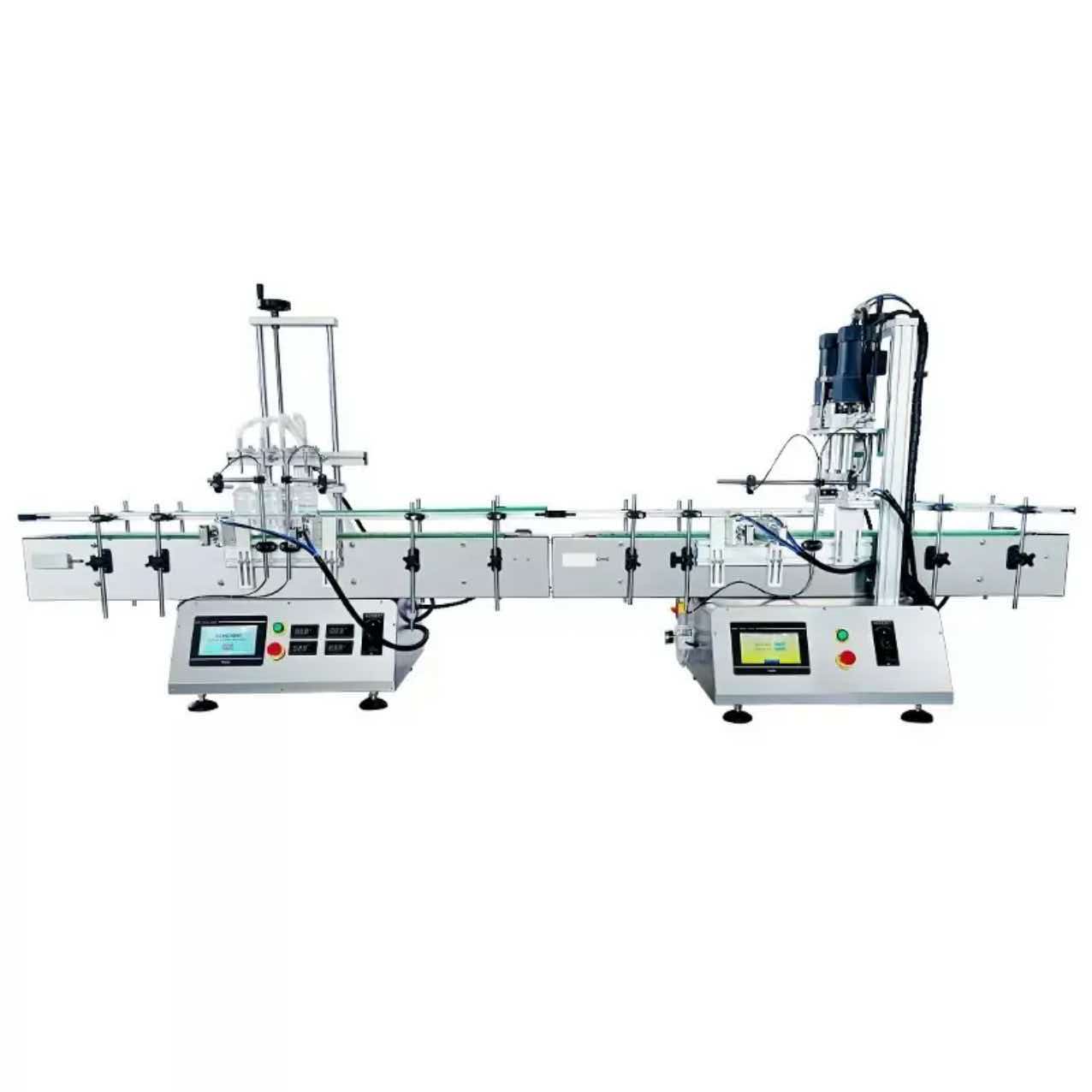

The filling machine can be combined with suitable capping, labeling and other packaging equipment to build a more complete automatic production workflow.

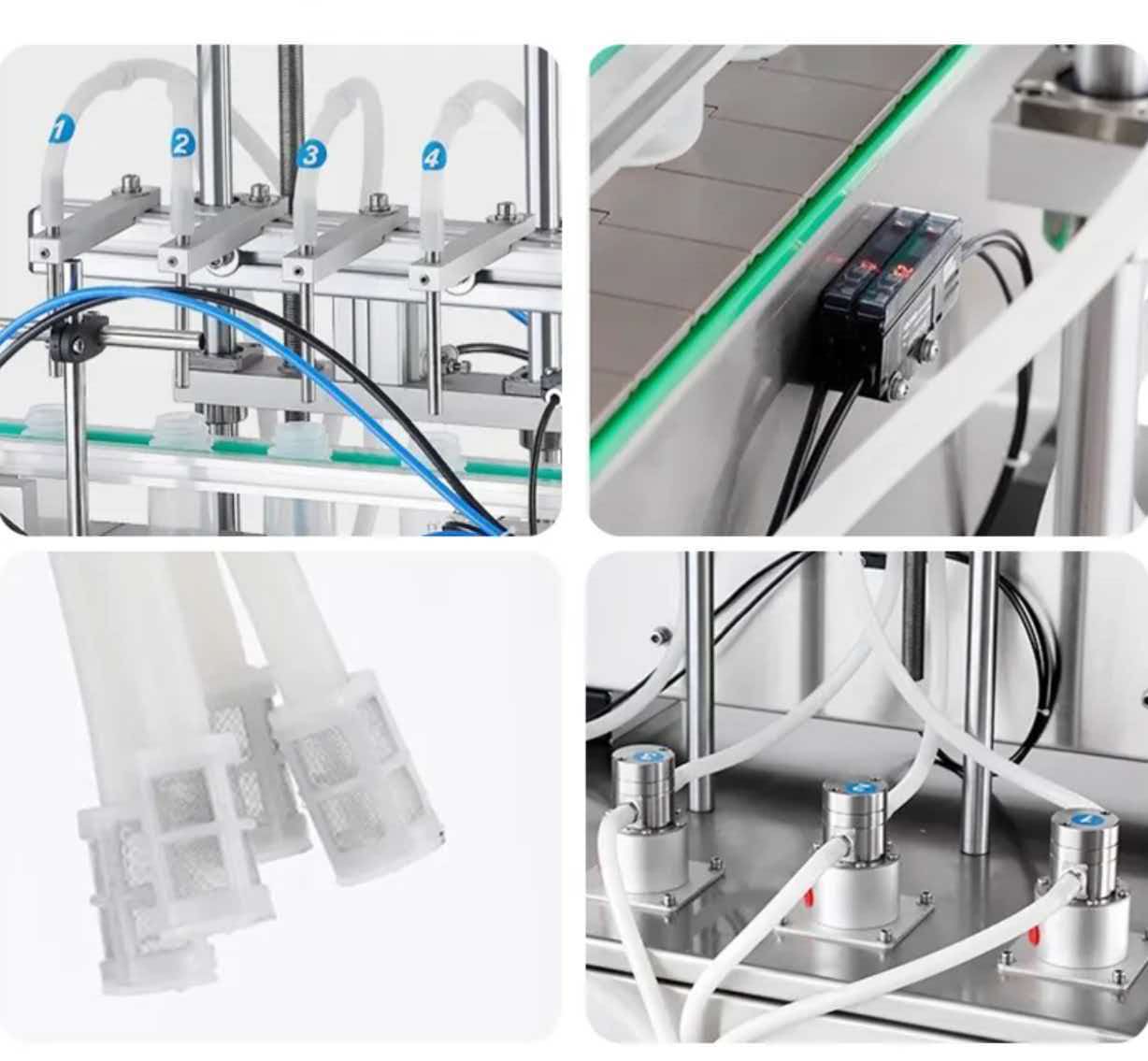

Filling Heads, Sensors and Liquid Delivery Components
The filling system combines multiple filling channels with bottle detection, conveyor handling and liquid delivery components. Individual filling channels allow a multi-head configuration to process several bottles during each filling cycle.
Because different liquids can have very different flow characteristics, the liquid-contact and delivery configuration should be selected according to the actual product rather than assuming one filling setup is suitable for every liquid.
How an Automatic Desktop Liquid Filling Machine Works
Bottle conveying, product detection and the configured filling channels work together to automate the liquid filling process.
Bottle Infeed
Empty bottles enter the conveyor and move toward the filling station using adjustable bottle guides.
Bottle Detection
Sensors detect the arriving containers and coordinate bottle positioning with the filling sequence.
Liquid Filling
The configured filling channels dispense product into the bottles according to the machine settings and filling application.
Bottle Discharge
After filling, bottles leave the filling station and can continue to capping, labeling or other downstream packaging equipment.

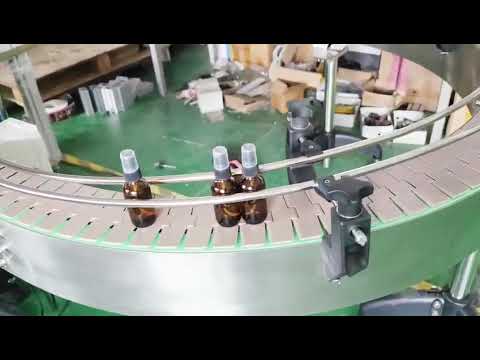

See the Desktop Filling Machine in a Complete Packaging Line
This video demonstrates how compact filling equipment can work with downstream capping and labeling machines as part of an automatic bottle packaging workflow.
Automatic Desktop Liquid Filling Machine Parameters
The following information is based on the supplied reference configuration. Final specifications may change according to filling head quantity, product characteristics and project requirements.
| Machine Type | Automatic Desktop Liquid Filling Machine |
|---|---|
| Automation | Automatic |
| Filling Heads | Customizable; the machine shown on this page uses a four-head configuration |
| Filling Material | Liquid / fluid products according to product characteristics and filling-system configuration |
| Reference Filling Volume | 100 mL shown in the supplied reference specification; other filling requirements should be confirmed before production |
| Container Type | Bottles and suitable rigid containers |
| Drive Method | Pneumatic |
| Core Component | Pump |
| Voltage | 220 V reference configuration |
| Machine Dimensions | Approx. 1200 × 700 × 850 mm |
| Reference Machine Weight | Approx. 100 kg |
| Warranty | 1 year |
| After-sales Support | Online support |
| Machine Test Report | Available |
| Factory Video Inspection | Available |
How to Configure the Right Desktop Liquid Filling Machine
A filling machine should be selected according to the actual liquid, container and production target rather than filling-head quantity alone.
Liquid Characteristics
Tell us what product will be filled. Flow behavior, viscosity, foaming, particles and chemical compatibility can affect the recommended filling configuration.
Filling Volume
Provide the required volume per bottle and acceptable production tolerance so the filling system can be evaluated for the actual application.
Required Capacity
Production capacity helps determine the suitable number of filling heads and overall machine configuration. More filling heads may be considered when higher throughput is required.
Downstream Equipment
If bottles also require capping, coding or labeling, the equipment layout should be evaluated as one packaging process rather than as isolated machines.
Why Product and Bottle Testing Matters
Two liquids that look similar can behave differently during automatic filling. Bottle opening size, liquid flow, foaming and required filling volume can all affect the recommended machine configuration.
For a more reliable evaluation, provide product information, bottle samples or dimensions and your required production capacity before the machine configuration is finalized.
Related Packaging Equipment
The filling machine can work as one stage of a complete bottle packaging line. Select downstream equipment according to the closure, label and finished packaging requirements.
Capping Machines
Explore automatic capping equipment for different bottle closures and production requirements.
Explore Capping Machines →Labeling Machines
Choose labeling equipment according to bottle shape, label position and required labeling method.
Explore Labeling Machines →Filling Machines
Compare additional filling solutions for different products, containers and production requirements.
Explore Filling Machines →Common Questions About Desktop Liquid Filling Machines
These questions help buyers evaluate filling-head configuration, liquid compatibility and production-line requirements.
What is an automatic desktop liquid filling machine?
It is a compact filling system that automatically conveys bottles through a filling station and dispenses liquid through one or more filling channels according to the configured production process.
Is this machine only available with four filling heads?
No. The machine shown on this page uses a four-head configuration, but the number of filling heads can be customized according to production capacity, bottle size and filling requirements.
What liquids can this filling machine handle?
The filling system can be configured for different liquid and fluid products. The suitable pump, tubing, nozzles and operating settings depend on the actual product characteristics and filling requirements.
Can it be used for cosmetic products?
Yes. Suitable configurations can be evaluated for cosmetic and personal-care liquids according to product characteristics, container type and required filling volume.
Can it fill food and beverage products?
Suitable food and beverage liquid applications can be evaluated according to the product, required filling process and liquid-contact component requirements.
Can the filling machine connect with a capping machine?
Yes. The filling machine can be integrated with suitable downstream capping equipment as part of an automatic bottle packaging line.
Can it also connect with a labeling machine?
Yes. Filling, capping and labeling equipment can be arranged as a continuous packaging workflow according to the bottle, closure, label and production requirements.
How do I choose the number of filling heads?
Filling-head quantity should be evaluated according to required production capacity, filling volume, bottle handling and the actual filling process rather than choosing a fixed number of heads for every application.
What information should I provide for a quotation?
Please provide the liquid or product information, bottle photos and dimensions, required filling volume, target production capacity and information about any required capping or labeling process.
Can you test my product and bottles before production?
Product and bottle testing can help evaluate the appropriate filling configuration before production. Contact us with your application details to confirm the testing requirements.
Need a Liquid Filling Solution for Your Bottles?
Send us your liquid information, bottle photos, bottle dimensions, required filling volume and target production capacity. If you also need capping or labeling, tell us the complete packaging process so we can evaluate the suitable line configuration.
